Stradivari E5720 bisNr84000

Sondyna AG; Zürich-Effretikon

  • Year
  • 1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75280

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 471 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

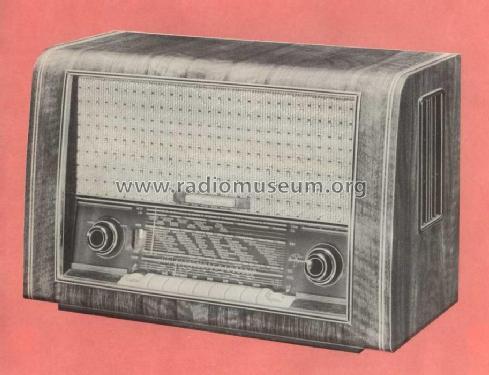

  • Model: Stradivari E5720 [bisNr84000] - Sondyna AG; Zürich-Effretikon
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 520 x 350 x 250 mm / 20.5 x 13.8 x 9.8 inch
  • Price in first year of sale
  • 475.00 CHF
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
