Radiola 492LV

Radiola 492LV; SRA Svenska (ID = 1035933) Radio Radiola 492LV; SRA Svenska (ID = 1035934) Radio
Radiola 492LV; SRA Svenska (ID = 1035935) Radio
Use red slider bar for more.

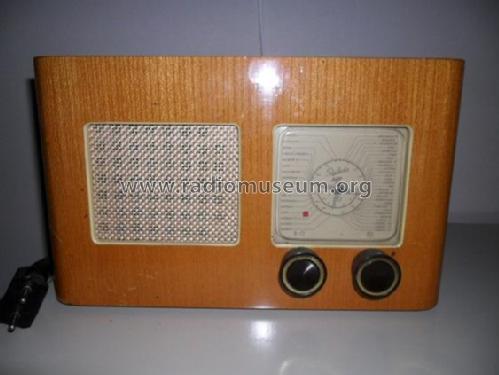

Radiola 492LV; SRA Svenska (ID = 1035933) Radio
SRA Svenska: Radiola 492LV [Radio] ID = 1035933 564x423
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 492LV, SRA Svenska Radioaktiebolaget; Stockholm: VK:jonas_bp #136258278
Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Power type and voltage AC/DC-set / 120-130; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Model: Radiola 492LV - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 310 x 170 x 0 mm / 12.2 x 6.7 x 0 inch

Circuit diagram is the same as for 472LV.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)

Model page created by Aglef Tröger. See "Data change" for further contributors.
