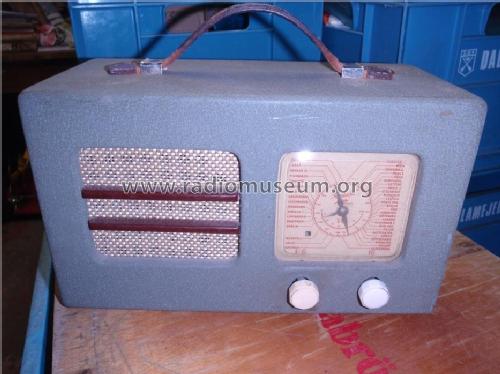

For model Radiola 472LV, SRA Svenska Radioaktiebolaget; Stockholm:
Gerät steht im EBM-Elektrizitätsmuseum (Elektra Birseck Münchenstein.

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details

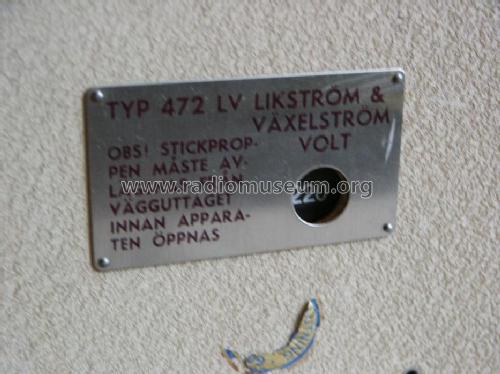

Power type and voltage AC/DC-set / 120-130; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Radiola 472LV - SRA Svenska Radioaktiebolaget;
Material Various materials
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 280 x 165 x 133 mm / 11 x 6.5 x 5.2 inch
Notes

See also 492LV

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Source of data -- Original-techn. papers.

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
