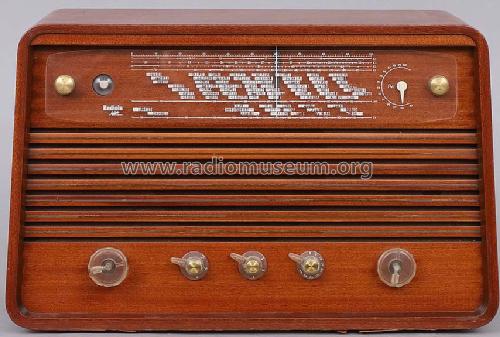

Radiola Symfonett 2555V
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Radiola | ||||
|---|---|---|---|---|---|
| Year: 1955 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 8: ECC85 ECH81 EF89 EABC80 EM34 ECC83 EL84 EL84 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave, more than 2 x SW plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-127; 150; 220; 245 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | 8 W (unknown quality) |
| from Radiomuseum.org | Model: Radiola Symfonett 2555V - SRA Svenska Radioaktiebolaget; |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 520 x 330 x 232 mm / 20.5 x 13 x 9.1 inch |
| Net weight (2.2 lb = 1 kg) | 11 kg / 24 lb 3.7 oz (24.229 lb) |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Peter Olausson. See "Data change" for further contributors.
All listed radios etc. from SRA Svenska Radioaktiebolaget; Stockholm
