Imperial 40GW

Imperial 40GW; Stassfurter Licht- (ID = 44066) Radio

Imperial 40GW; Stassfurter Licht- (ID = 10910) Radio

Imperial 40GW; Stassfurter Licht- (ID = 6883) Radio
Imperial 40GW; Stassfurter Licht- (ID = 1521287) Radio Imperial 40GW; Stassfurter Licht- (ID = 484197) Radio
Imperial 40GW; Stassfurter Licht- (ID = 1386636) Radio
Use red slider bar for more.
Imperial 40GW; Stassfurter Licht- (ID = 1521287) Radio

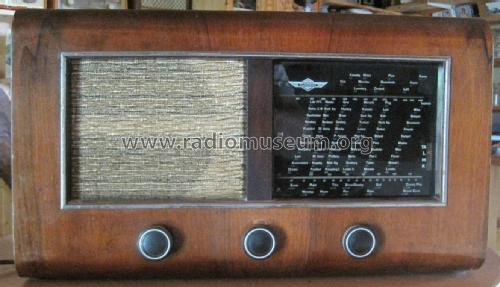

Stassfurter Licht-: Imperial 40GW [Radio] ID = 1521287 899x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 40GW, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter):
Kaum zu glauben, aber in den späten 80er Jahren spielte dieses Radio noch brav in unserem Wohnzimmer die Schlager-Revue von Radio DDR...

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF3 CBC1 CL4 CY1 U920 or EUXII or EUXIII
Main principle Superheterodyne (common); ZF/IF 477 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Imperial 40GW - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 327 x 280 mm / 22.4 x 12.9 x 11 inch
Notes Ch= 4BGW.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 259.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

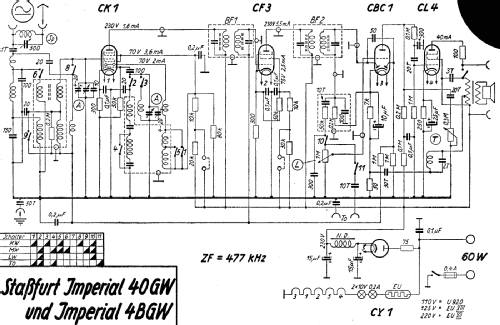

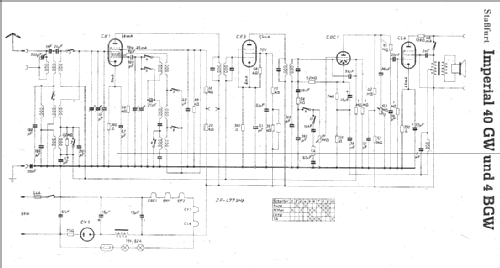

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Here you find 222 models, 167 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
