Imperial W47 (47W)

Imperial W47 ; Stassfurter Licht- (ID = 1642820) Radio

Imperial W47 ; Stassfurter Licht- (ID = 1642827) Radio

Imperial W47 ; Stassfurter Licht- (ID = 221478) Radio

Imperial W47 ; Stassfurter Licht- (ID = 943431) Radio

Imperial W47 ; Stassfurter Licht- (ID = 1642824) Radio

Imperial W47 ; Stassfurter Licht- (ID = 1642826) Radio

Imperial W47 ; Stassfurter Licht- (ID = 1642830) Radio
Imperial W47 ; Stassfurter Licht- (ID = 2406537) Radio Imperial W47 ; Stassfurter Licht- (ID = 4060) Radio

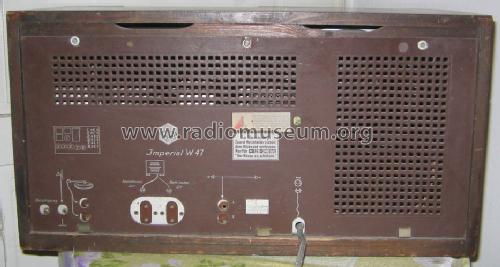

Imperial W47 ; Stassfurter Licht- (ID = 89821) Radio Imperial W47 ; Stassfurter Licht- (ID = 89822) Radio
Imperial W47 ; Stassfurter Licht- (ID = 4061) Radio Imperial W47 ; Stassfurter Licht- (ID = 4062) Radio

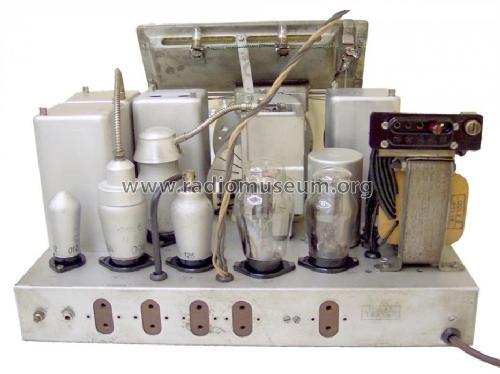

Imperial W47 ; Stassfurter Licht- (ID = 89820) Radio Imperial W47 ; Stassfurter Licht- (ID = 131656) Radio
Imperial W47 ; Stassfurter Licht- (ID = 131657) Radio Imperial W47 ; Stassfurter Licht- (ID = 655262) Radio
Use red slider bar for more.

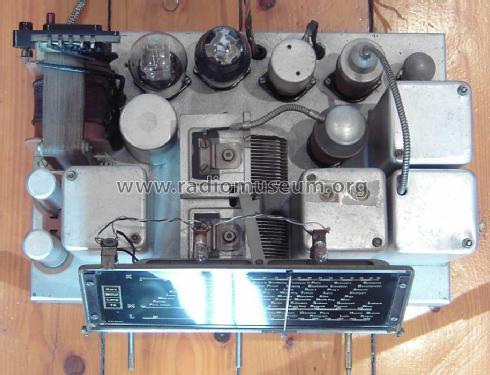

Imperial W47 ; Stassfurter Licht- (ID = 2406537) Radio
Stassfurter Licht-: Imperial W47 [Radio] ID = 2406537 1400x743
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial W47 (47W), Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter):
Inventar Nr.525

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 AB2 AC2 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 477 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Imperial W47 - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 615 x 315 x 305 mm / 24.2 x 12.4 x 12 inch
Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)
Price in first year of sale 285.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

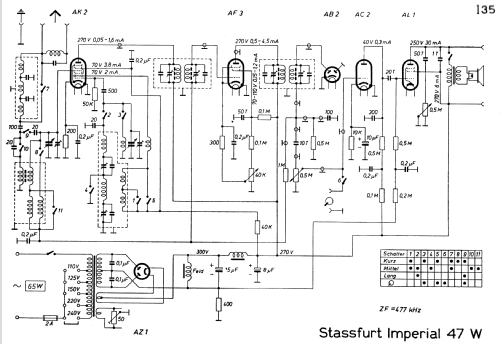

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
