Imperial 60GWK M-Schrank

Imperial 60GWK; Stassfurter Licht- (ID = 221489) Radio

Imperial 60GWK; Stassfurter Licht- (ID = 6930) Radio
Use red slider bar for more.
Imperial 60GWK; Stassfurter Licht- (ID = 221489) Radio

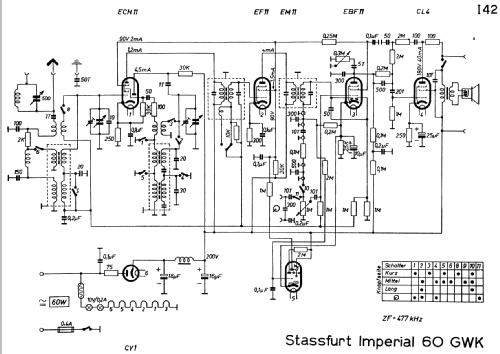

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1939–1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EF11 EBF11 CL4 EM11 CY1 EUIX
Main principle Superheterodyne (common); ZF/IF 477 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Record Player (not changer)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Imperial 60GWK [M-Schrank] - Stassfurter Licht- und
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 955 x 840 x 430 mm / 37.6 x 33.1 x 16.9 inch
Notes Ch= 60GWK.
Net weight (2.2 lb = 1 kg) 44.6 kg / 98 lb 3.8 oz (98.238 lb)
Price in first year of sale 680.00 RM
Source of data Katalog Eltax, Berlin, 1939/40 / Radiokatalog Band 1, Ernst Erb
Mentioned in Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände) (6)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Here you find 222 models, 167 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
