Tribüne 33 220

Tribüne 33 220; Loewe-Opta; (ID = 1230990) TV Radio

Tribüne 33 220; Loewe-Opta; (ID = 1230992) TV Radio
Tribüne 33 220; Loewe-Opta; (ID = 904797) TV Radio Tribüne 33 220; Loewe-Opta; (ID = 904796) TV Radio
Tribüne 33 220; Loewe-Opta; (ID = 454100) TV Radio Tribüne 33 220; Loewe-Opta; (ID = 904798) TV Radio
Tribüne 33 220; Loewe-Opta; (ID = 904799) TV Radio
Use red slider bar for more.
Tribüne 33 220; Loewe-Opta; (ID = 904797) TV Radio
Loewe-Opta;: Tribüne 33 220 [TV Radio] ID = 904797 933x684
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tribüne 33 220, Loewe-(Opta); Deutschland:
By curtesy of ebay member einstein-gruesst, auction # 260715504316

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1962/1963 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 24: ECC85 ECH81 EBF89 EF86 EM84 EF86 EL84 EL84 PCC88 PCF80 EF183 EF80 EF80 EF80 PCL84 ECH81 ECH81 PCL86 PCL82 ECC82 PL36 PY88 DY86 AW53-88
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Tribüne 33 220 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1260 x 920 x 470 mm / 49.6 x 36.2 x 18.5 inch
Notes Fernseh-Chassis = Aviso 33 020;
Rundfunk-Chassis = 32870W;
Phono-Chassis = Perpetuum-Ebner PE66.
Net weight (2.2 lb = 1 kg) 82 kg / 180 lb 9.9 oz (180.617 lb)
Price in first year of sale 2'098.00 DM
Source of data Handbuch VDRG 1962/1963
Mentioned in

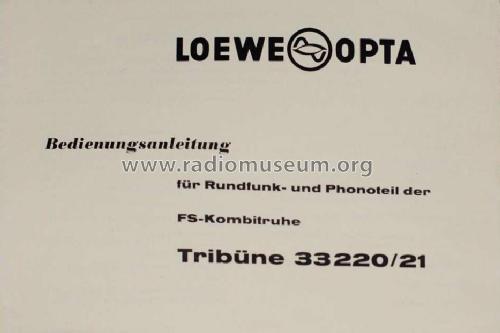

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.



All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1310 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
