Beethoven II (2) Export für Polen

Beethoven II ; Stern-Radio Rochlitz (ID = 1906498) Radio

Beethoven II ; Stern-Radio Rochlitz (ID = 1906499) Radio
Beethoven II ; Stern-Radio Rochlitz (ID = 1226239) Radio Beethoven II ; Stern-Radio Rochlitz (ID = 1226240) Radio
Beethoven II ; Stern-Radio Rochlitz (ID = 1226241) Radio Beethoven II ; Stern-Radio Rochlitz (ID = 2021597) Radio
Beethoven II ; Stern-Radio Rochlitz (ID = 2021598) Radio Beethoven II ; Stern-Radio Rochlitz (ID = 2021599) Radio
Beethoven II ; Stern-Radio Rochlitz (ID = 2021600) Radio Beethoven II ; Stern-Radio Rochlitz (ID = 2021843) Radio
Beethoven II ; Stern-Radio Rochlitz (ID = 2021844) Radio Beethoven II ; Stern-Radio Rochlitz (ID = 2037876) Radio
Use red slider bar for more.
Beethoven II ; Stern-Radio Rochlitz (ID = 1226239) Radio
Stern-Radio Rochlitz: Beethoven II [Radio] ID = 1226239 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beethoven II (2) Export für Polen, Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG:
Bild von Iris Joschko.

Country:  Germany
Manufacturer / Brand:  Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: ECC85 EF89 ECH81 EF89 EM80 EBF80 EABC80 ECC83 EL84 EL84 EL84 AZ12
Main principle Superhet with RF-stage; ZF/IF 440/10700 kHz
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt

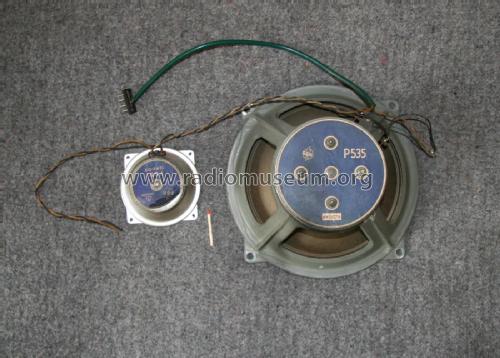

Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Beethoven II [Export für Polen] - Stern-Radio Rochlitz, VEB, RFT
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 655 x 455 x 325 mm / 25.8 x 17.9 x 12.8 inch
Notes Polnische Beschriftung der Tasten.
Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)
Collectors' prices

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Here you find 111 models, 98 with images and 82 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
