Beethoven R nur Radiochassis; Stern-Radio Rochlitz (ID = 714907) Radio
Stern-Radio Rochlitz: Beethoven R nur Radiochassis [Radio] ID = 714907 933x514
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beethoven R nur Radiochassis, Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG:

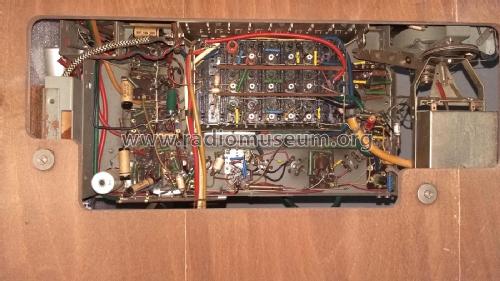

Chassis auf Sperrholzplatte montiert.

Country:  Germany
Manufacturer / Brand:  Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: ECC85 EF89 ECH81 EF89 EM80 EBF80 EABC80 ECC83 EL84 EL84 EL84 EZ81
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Beethoven R nur Radiochassis - Stern-Radio Rochlitz, VEB, RFT
Material Metal case
Shape Chassis only or for «building in»
Notes Eine spezielle Variante / Bauausführung auf der Basis des "Beethoven 2" als Radiochassis für Tonmöbel anderer Hersteller.

Model page created by Jens Dehne. See "Data change" for further contributors.
