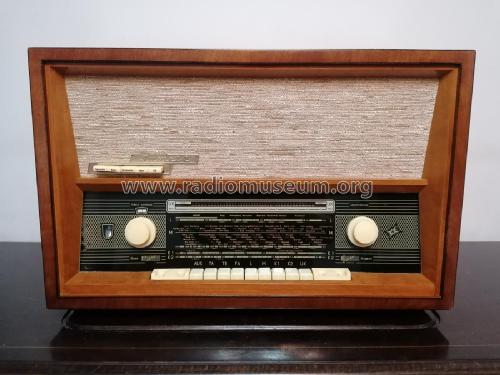

Juwel 2 Gehäuse eckig, Tasten links

Juwel 2 ; Stern-Radio Rochlitz (ID = 43714) Radio Juwel 2 ; Stern-Radio Rochlitz (ID = 414410) Radio
Juwel 2 ; Stern-Radio Rochlitz (ID = 414409) Radio Juwel 2 ; Stern-Radio Rochlitz (ID = 414408) Radio
Use red slider bar for more.

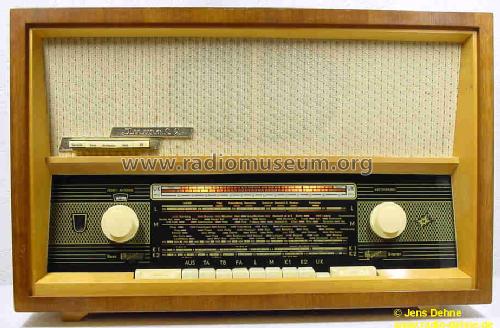

Juwel 2 ; Stern-Radio Rochlitz (ID = 43714) Radio
Stern-Radio Rochlitz: Juwel 2 [Radio] ID = 43714 923x606
Select picture or schematic to display from thumbnails on the right and click for download.
For model Juwel 2 Gehäuse eckig, Tasten links, Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EBF80 or EBF89 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Juwel 2 [Gehäuse eckig, Tasten links] - Stern-Radio Rochlitz, VEB, RFT
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Paralleltype zum Juwel 2, abgerundetes Gehäuse.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
