Clarissa 53ST201

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 1964099) TV Radio

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 1964100) TV Radio

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 1964101) TV Radio

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 1964103) TV Radio

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 1964104) TV Radio

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 1964105) TV Radio

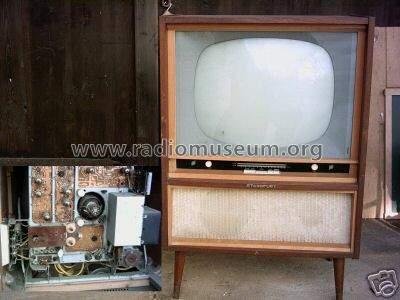

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 121952) TV Radio Clarissa 53ST201; Stern-Radio Staßfurt (ID = 154696) TV Radio

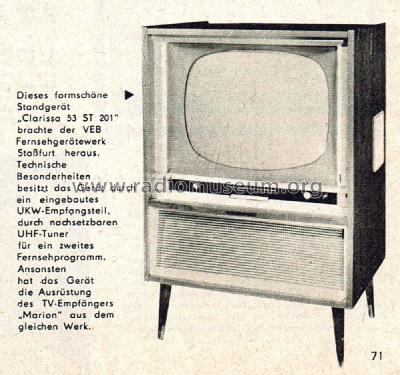

Clarissa 53ST201; Stern-Radio Staßfurt (ID = 2606939) TV Radio
Use red slider bar for more.
Clarissa 53ST201; Stern-Radio Staßfurt (ID = 121952) TV Radio
Stern-Radio Staßfurt: Clarissa 53ST201 [TV Radio] ID = 121952 503x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Clarissa 53ST201, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:
Prospektbild

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1963 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 21: PC96 PCF82 EF80 PCL84 PM84 PABC80 PL84 ECC82 PL36 PY88 DY86 PCC85 PC96
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 38900/5500 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Clarissa 53ST201 - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 673 x 1005 x 467 mm / 26.5 x 39.6 x 18.4 inch
Notes 53cm Bildrohr 110° (B53G1), GB-Tuner 11 Kanäle VHF, UKW-Tuner. Einige Röhren mehrfach.
Net weight (2.2 lb = 1 kg) 42 kg / 92 lb 8.2 oz (92.511 lb)
Price in first year of sale 2'170.00 Mark
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (Branchenbuch für Elektro-Akustik (DDR, 1963))

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
