Lohengrin 8E155A

Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 679551) Radio

Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 679543) Radio

Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 810606) Radio

Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 810607) Radio

Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 810608) Radio
Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 679540) Radio Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 1822653) Radio
Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 1822654) Radio Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 1822655) Radio
Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 1822656) Radio Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 1822657) Radio
Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 1822658) Radio
Use red slider bar for more.
Lohengrin 8E155A; Stern-Radio Staßfurt (ID = 679540) Radio
Stern-Radio Staßfurt: Lohengrin 8E155A [Radio] ID = 679540 900x847
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lohengrin 8E155A, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:

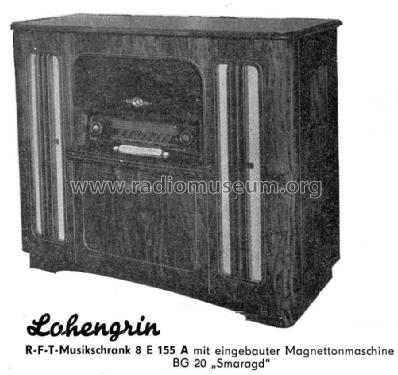

Bild aus Servicemappe Stern-Radio Staßfurt

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF89 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468/6700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Lohengrin 8E155A - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1100 x 890 x 480 mm / 43.3 x 35 x 18.9 inch
Notes Musikschrank mit Radioteil Diamant, Tonband BG20 Smaragd, getrennte Höhen- und Tiefenregelung (kein Klangregister).
Im Nachfolgemodell wird das Chassis 8E155 I (Diamant II) eingebaut.
Net weight (2.2 lb = 1 kg) 84.5 kg / 186 lb 2 oz (186.123 lb)
Source of data -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
