Onyx 8E156I

ID = 71469

Onyx 8E156I; Stern-Radio Staßfurt (ID = 167105) Radio

Onyx 8E156I; Stern-Radio Staßfurt (ID = 313720) Radio

Onyx 8E156I; Stern-Radio Staßfurt (ID = 313721) Radio

Onyx 8E156I; Stern-Radio Staßfurt (ID = 167100) Radio

Onyx 8E156I; Stern-Radio Staßfurt (ID = 167103) Radio

{gbW: "900", gbH: "683", mW: "494.0", mH: "375", kb: "136 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from RM Member (sID 243) (1)", ite: "1"} {gbW: "800", gbH: "513", mW: "500", mH: "320.0", kb: "100 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Mario Spitzer (1)", ite: "1"} {gbW: "600", gbH: "399", mW: "500", mH: "332.0", kb: "84 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Mario Spitzer (1)", ite: "1"} {gbW: "700", gbH: "481", mW: "500", mH: "343.0", kb: "87 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Mario Spitzer (1)", ite: "1"} {gbW: "933", gbH: "621", mW: "500", mH: "332.0", kb: "92 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:[br]unrestaurierter Zustand", title: "Stern-Radio Staßfurt Onyx 8E156I from Jens Dehne (1)", ite: "1"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "148 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Reinhard Hopfe (1)", ite: "1"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "145 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Reinhard Hopfe (1)", ite: "1"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "126 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Reinhard Hopfe (1)", ite: "1"} {gbW: "720", gbH: "456", mW: "500", mH: "316.0", kb: "129 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Bert Haldemann (1)", ite: "1"} {gbW: "400", gbH: "289", mW: "400", mH: "289", kb: "25 KB", notes: "For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...", title: "Stern-Radio Staßfurt Onyx 8E156I from Zlatan Mumlek (1)", ite: "1"}

Next pictures

Use red slider bar for more.

Onyx 8E156I; Stern-Radio Staßfurt (ID = 1676689) Radio

Stern-Radio Staßfurt: Onyx 8E156I [Radio] ID = 1676689 900x683

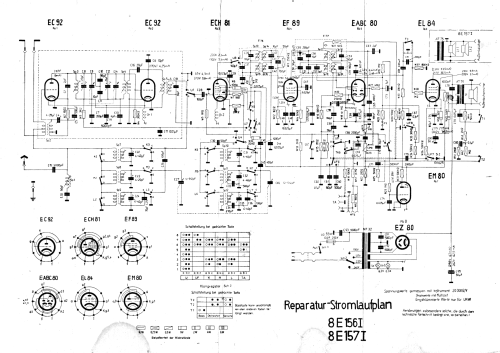

Select picture or schematic to display from thumbnails on the right and click for download.

For model Onyx 8E156I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

Country:

Germany

Manufacturer / Brand:

Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

alternative name

Fernsehgerätewerk Staßfurt

Year: 1957 ?

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

8: EC92 EC92 ECH81 EF89 EM80 EABC80 EL84 EZ80

Main principle	to an article Super-Heterodyne (Super in general); ZF/IF 468/6700 kHz
Tuned circuits	6 AM circuit(s) 9 FM circuit(s)
Wave bands	Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage	Alternating Current supply (AC) / 110-240 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out	3 W (unknown quality)
from Radiomuseum.org	Model: Onyx 8E156I - Stern-Radio Staßfurt, VEB, RFT
Material	Wooden case

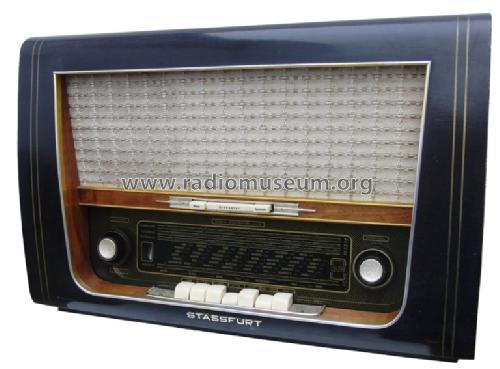

Shape	Tablemodel with Push Buttons.
Dimensions (WHD)	590 x 400 x 310 mm / 23.2 x 15.7 x 12.2 inch
Notes	Weiterentwicklung des "Rienzi 8E156 I" mit 7 Tasten (Aus + UKW-Fern), 3-Tasten-Klangregister, Tonblende.
Net weight (2.2 lb = 1 kg)	14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale	500.00 DM
Collectors' prices
Source of data	Radiokatalog Band 2, Ernst Erb
Mentioned in	Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 (Funkverlag Hein, Service-DVD)

Model page created by Jens Dehne. See "Data change" for further contributors.

All listed radios etc. from Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
Here you find 393 models, 304 with images and 305 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Mario Spitzer (D)

Collection of Reinhard Hopfe (D)

Collection of Hans-Werner Ellerbrock (D)

Collection of Zlatan Mumlek (HR)

Collection of Heiner Sann (D)

Collection of Jens Dehne (D)

Collection of a member from D

Collection of Bert Haldemann (D)

Collection of Gerhard Krug (D)

Collection of Jörg Schäfer (D)

Forum contributions about this model

Stern-Radio Staßfurt: Onyx 8E156I

Threads: 1 | Posts: 1

Hits: 1503 Replies: 0 stern-stas: 8E156I (8 E 156 I); Onyx
Egon Strampe 01.Jun.09	1 stern-stas: 8E156I (8 E 156 I); Onyx Ton leise und verzerrt. C87 hatte schluß.
