Concerton V527
Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335998
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468/10850 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- from Radiomuseum.org
- Model: Concerton V527 - Stern & Stern Concerton /
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 464 x 295 x 208 mm / 18.3 x 11.6 x 8.2 inch
- Net weight (2.2 lb = 1 kg)
- 8.2 kg / 18 lb 1 oz (18.062 lb)
- Literature/Schematics (1)

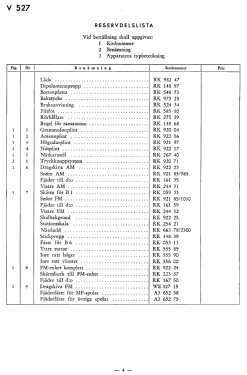

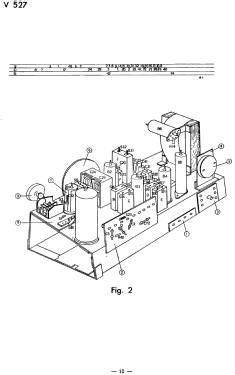

- -- Original-techn. papers. (AB Stern&Stern service data 1957)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
