• Year
  • 1957–1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21216

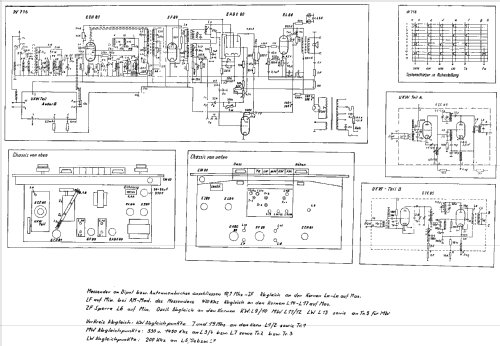

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Maestro Standardsuper W716 [EM80] - Südfunk-Apparatebau, Dr. Ing.
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 610 x 350 x 260 mm / 24 x 13.8 x 10.2 inch
  • Notes
  • dreh- und abschaltbare Ferritantenne.
  • Net weight (2.2 lb = 1 kg)
  • 9.8 kg / 21 lb 9.4 oz (21.586 lb)
  • Price in first year of sale
  • 356.00 DM
  • External source of data
  • Erb
