Phono-Super W716

Phono-Super W716; Südfunk-Apparatebau, (ID = 992066) Radio
Phono-Super W716; Südfunk-Apparatebau, (ID = 469885) Radio
Use red slider bar for more.
Phono-Super W716; Südfunk-Apparatebau, (ID = 469885) Radio

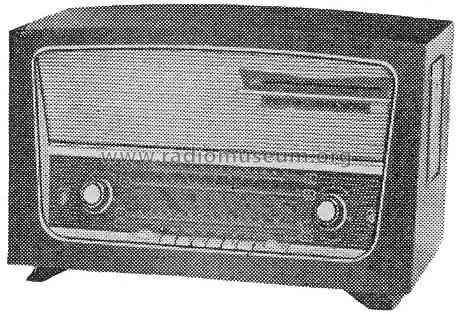

Südfunk-Apparatebau,: Phono-Super W716 [Radio] ID = 469885 459x314
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Super W716, Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart

Country:  Germany
Manufacturer / Brand:  Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Phono-Super W716 - Südfunk-Apparatebau, Dr. Ing.
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 350 x 300 mm / 24 x 13.8 x 11.8 inch
Notes

Dreh- und abschaltbare Ferritantenne;
Phono-Chassis = Philips Mignon AG2013.

Paralleltype zum Quelle Simonetta 3D - Phono.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 456.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb

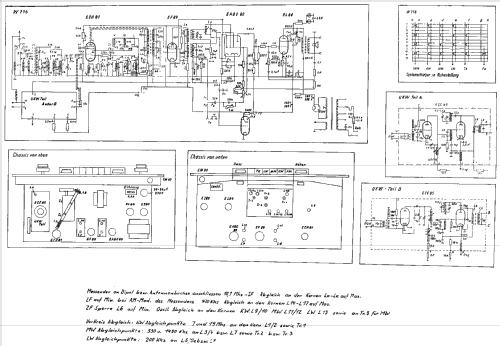

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
Here you find 149 models, 104 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
