• Country
• Germany

• Manufacturer / Brand
• Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4771

• • alternative name: Telephon-Fabrik, AG vorm. J. Berliner

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AF7 AB2 AC2 AD1 AZ1

• Main principle
• TRF with diode detector; 1 Special; 2 AF stage(s); Reaction

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

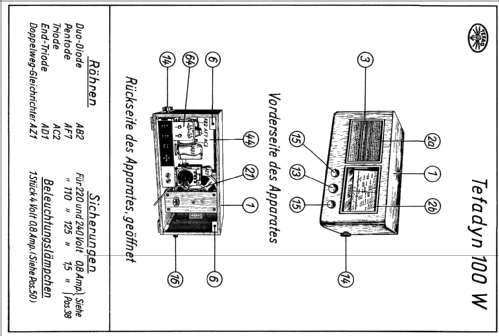

• Model: Tefadyn 100W - Tefag; Telephon

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 275 x 270 mm / 22 x 10.8 x 10.6 inch

• Notes
• auch für Drahtfunk

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 157.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

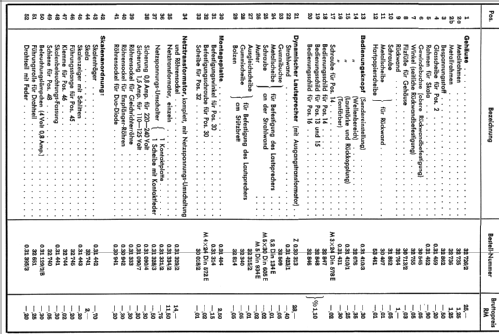

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
