Colonia (I) VS760GW

Colonia VS760GW; Tefi-Apparatebau; (ID = 952058) Radio

Colonia VS760GW; Tefi-Apparatebau; (ID = 952063) Radio
Colonia VS760GW; Tefi-Apparatebau; (ID = 951835) Radio Colonia VS760GW; Tefi-Apparatebau; (ID = 951840) Radio
Colonia VS760GW; Tefi-Apparatebau; (ID = 951841) Radio Colonia VS760GW; Tefi-Apparatebau; (ID = 951842) Radio
Use red slider bar for more.
Colonia VS760GW; Tefi-Apparatebau; (ID = 951835) Radio
Tefi-Apparatebau;: Colonia VS760GW [Radio] ID = 951835 933x781
Select picture or schematic to display from thumbnails on the right and click for download.
For model Colonia (I) VS760GW, Tefi-Apparatebau; Porz bei Köln:
Sammlung Heinz Hipper

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 CL4 EM11 CY1
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Colonia VS760GW - Tefi-Apparatebau; Porz bei
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 524 x 374 x 218 mm / 20.6 x 14.7 x 8.6 inch
Notes [FS50-93B]
Price in first year of sale 376.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

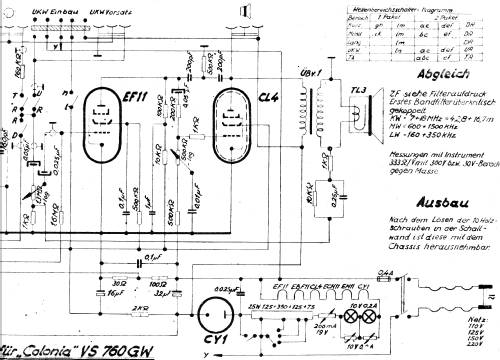

Circuit diagram reference Hermann Rottmann und Fred P. Langheinrich hatten mir dieses Gerät erstmals bekannt gemacht. Sie verfügen jedoch nicht über Schaltungen darüber oder weitere Informationen, sondern haben mir bei der Recherche geholfen. Danke.
Mentioned in Tefifon, Das; Herbert Jüttemann
