Colonia II (2) T1656

Colonia II T1656; Tefi-Apparatebau; (ID = 2114179) Radio
Colonia II T1656; Tefi-Apparatebau; (ID = 3392) Radio Colonia II T1656; Tefi-Apparatebau; (ID = 180208) Radio
Colonia II T1656; Tefi-Apparatebau; (ID = 180209) Radio Colonia II T1656; Tefi-Apparatebau; (ID = 1188559) Radio
Colonia II T1656; Tefi-Apparatebau; (ID = 1188560) Radio Colonia II T1656; Tefi-Apparatebau; (ID = 1193697) Radio
Colonia II T1656; Tefi-Apparatebau; (ID = 1505794) Radio Colonia II T1656; Tefi-Apparatebau; (ID = 1505795) Radio
Use red slider bar for more.
Colonia II T1656; Tefi-Apparatebau; (ID = 3392) Radio
Tefi-Apparatebau;: Colonia II T1656 [Radio] ID = 3392 838x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Colonia II (2) T1656, Tefi-Apparatebau; Porz bei Köln:
Quelle: Herr Jürgen Teloh, Deutschland

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1954–1956 Category: Broadcast Receiver - or past WW2 Tuner

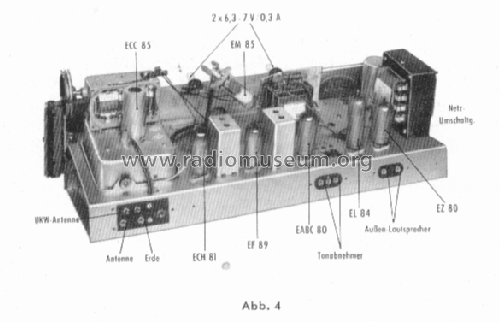

Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM85 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Colonia II T1656 - Tefi-Apparatebau; Porz bei
Material Wooden case

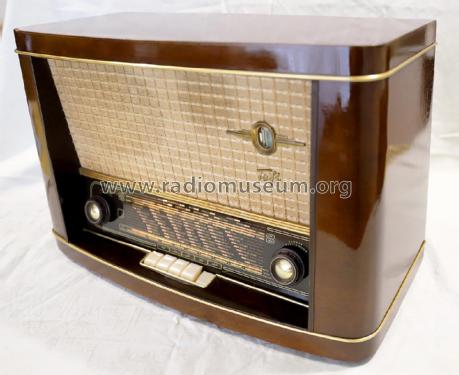

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 350 x 250 mm / 21.3 x 13.8 x 9.8 inch
Net weight (2.2 lb = 1 kg) 8.4 kg / 18 lb 8 oz (18.502 lb)
Price in first year of sale 198.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Tefi-Apparatebau; Porz bei Köln
Here you find 111 models, 99 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
