Musikschrank D133 Ch= T585

Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 967392) Radio

Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 2114528) Radio
Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 150319) Radio Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 150320) Radio
Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 150321) Radio Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 150322) Radio
Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 301527) Radio Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 301530) Radio
Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 301531) Radio Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 301532) Radio
Use red slider bar for more.
Musikschrank D133 Ch= T585; Tefi-Apparatebau; (ID = 150319) Radio
Tefi-Apparatebau;: Musikschrank D133 Ch= T585 [Radio] ID = 150319 933x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank D133 Ch= T585, Tefi-Apparatebau; Porz bei Köln

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80 or
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Other Recorder/Player
Power type and voltage Alternating Current supply (AC) / 110, 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Musikschrank D133 Ch= T585 - Tefi-Apparatebau; Porz bei
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1050 x 820 x 440 mm / 41.3 x 32.3 x 17.3 inch
Notes Eingebauter Schallbandspieler KC1.
Price in first year of sale 598.00 DM
Source of data Radiokatalog Band 2, Ernst Erb

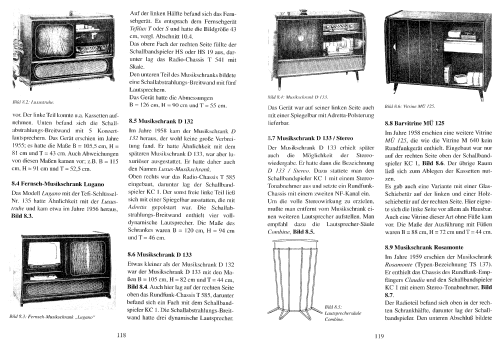

Mentioned in Tefifon, Das; Herbert Jüttemann

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Tefi-Apparatebau; Porz bei Köln
Here you find 111 models, 99 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
