Tefilux T

Tefilux T; Tefi-Apparatebau; (ID = 658605) Television

Tefilux T; Tefi-Apparatebau; (ID = 658606) Television

Tefilux T; Tefi-Apparatebau; (ID = 658607) Television

Tefilux T; Tefi-Apparatebau; (ID = 658608) Television
Tefilux T; Tefi-Apparatebau; (ID = 980538) Television Tefilux T; Tefi-Apparatebau; (ID = 980539) Television
Tefilux T; Tefi-Apparatebau; (ID = 980540) Television Tefilux T; Tefi-Apparatebau; (ID = 169621) Television
Tefilux T; Tefi-Apparatebau; (ID = 980541) Television
Use red slider bar for more.
Tefilux T; Tefi-Apparatebau; (ID = 980538) Television
Tefi-Apparatebau;: Tefilux T [Television] ID = 980538 933x814

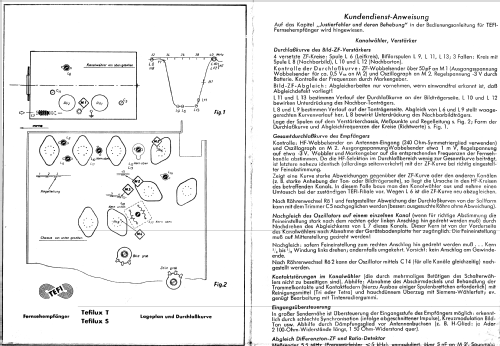

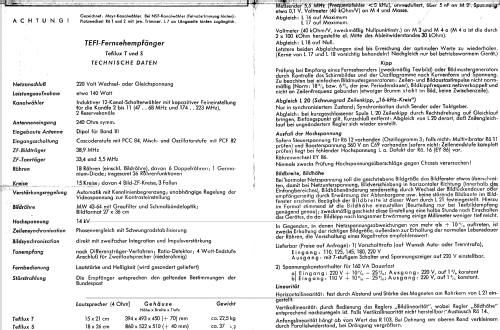

Select picture or schematic to display from thumbnails on the right and click for download.
For model Tefilux T, Tefi-Apparatebau; Porz bei Köln:
Aus der Sammlung eines befreundeten Sammlers

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC84 PCF82 EF80 EF80 EF80 EF80 EF80 PABC80 PL82 ECL80 ECL80 PL81 PY81 EY86 PCL81 PY82 PY82 MW43-64
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Tefilux T - Tefi-Apparatebau; Porz bei
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 495 x 395 x 450 mm / 19.5 x 15.6 x 17.7 inch
Notes Nur VHF. Fernbedienung für Helligkeit und Lautstärke per Draht. Baugleich mit "Weltfunk T0243".
Price in first year of sale 698.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Tefifon, Das; Herbert Jüttemann

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Tefi-Apparatebau; Porz bei Köln
Here you find 111 models, 99 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
