• Country
• Germany

• Manufacturer / Brand
• TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19625

• • alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
  • Brand: KD

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

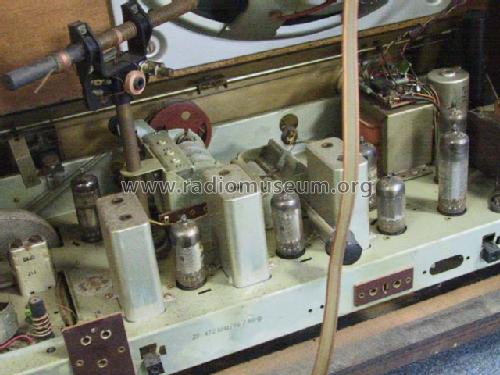

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 ECC83 EL84 EL84

• Number of Transistors

• Semiconductors
• B250C110

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: W488 - TeKaDe TKD, Süddeutsche

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 400 x 310 mm / 26.4 x 15.7 x 12.2 inch

• Notes
• Schaltbare Bandbreite und schaltbare Rauschunterdrückung auf UKW, MW Ortsendertaste

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Price in first year of sale
• 398.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• Radio-Mentor (12/1954 S.640ff., Empfänger-Test)
