T-426-M

T-426-M; Telefongyar, Terta (ID = 301266) Radio T-426-M; Telefongyar, Terta (ID = 301269) Radio
T-426-M; Telefongyar, Terta (ID = 301268) Radio T-426-M; Telefongyar, Terta (ID = 734498) Radio
T-426-M; Telefongyar, Terta (ID = 734499) Radio T-426-M; Telefongyar, Terta (ID = 734500) Radio
T-426-M; Telefongyar, Terta (ID = 734501) Radio T-426-M; Telefongyar, Terta (ID = 1444542) Radio
T-426-M; Telefongyar, Terta (ID = 1444544) Radio T-426-M; Telefongyar, Terta (ID = 1444546) Radio
Use red slider bar for more.

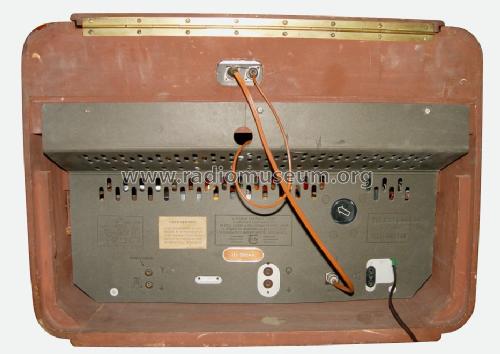

T-426-M; Telefongyar, Terta (ID = 301266) Radio
Telefongyar, Terta: T-426-M [Radio] ID = 301266 701x499
Select picture or schematic to display from thumbnails on the right and click for download.
For model T-426-M, Telefongyar, Terta (TRT); Budapest

Country:  Hungary
Manufacturer / Brand:  Telefongyar, Terta (TRT); Budapest
Brand

Terta, TRT
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 ECC83 EL84 EM80 EZ80
schematic requested
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast and Short Wave (SW).
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: T-426-M - Telefongyar, Terta TRT;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 595 x 440 x 420 mm / 23.4 x 17.3 x 16.5 inch
Notes Tonbandgerät Terta 811 eingebaut. 2 Tasten für Festsender (539 kHz Kossuth + 872kHz Petöfi); Ferritantenne
Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Price in first year of sale 5'980.00 HUF
Source of data - - Data from my own collection
Mentioned in Radio es Televizio Vevö Keszülekek, 1958-59

Model page created by Manfred Seidel. See "Data change" for further contributors.



All listed radios etc. from Telefongyar, Terta (TRT); Budapest
Here you find 209 models, 197 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
