500 Superhet

Telefunken; Wien

  • Year
  • 1932/1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80616

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 107, 127, 153, 220, 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 500 Superhet - Telefunken; Wien
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 420 x 530 x 280 mm / 16.5 x 20.9 x 11 inch
  • Notes

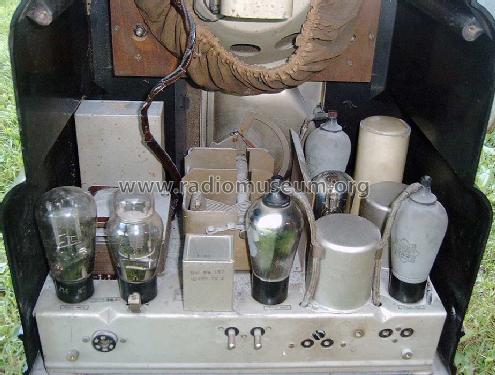

  • This is NOT a radio from Telefunken Austria but importet to Austria. Since there are so many looking for we list it here too - including some pictures but please post to the model listed in Tschechoslowakia under the maker Radiotechna, spol. s r. o., Praha-Prelouc.

    Tschechische Ausführung des 650WL, 1.Telefunken-Super. Dies ist NICHT ein Modell von Telefunken Österreich. Da immer wieder unter Telefunken gesucht, führen wir das Modell hier ebenfalls, doch bitte Bilder und Daten unter Tschechoslowakei, Hersteller: Radiotechna, spol. s r. o., Praha-Prelouc posten. Danke.
    Betreffend ZF-Frequenz sind wir unsicher ob 420 oder 460 kHz. Wer weiss mehr? Der Schaltplan liegt auf dem "Originaleintrag".
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
