523GWL (T523GWL)

523GWL ; Telefunken (ID = 21754) Radio

523GWL ; Telefunken (ID = 21755) Radio

523GWL ; Telefunken (ID = 42199) Radio

523GWL ; Telefunken (ID = 42200) Radio

523GWL ; Telefunken (ID = 7676) Radio

523GWL ; Telefunken (ID = 718175) Radio

523GWL ; Telefunken (ID = 718177) Radio

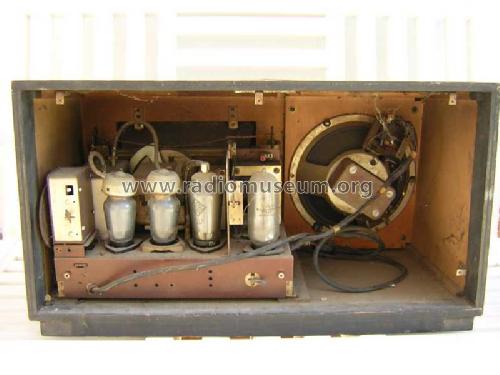

523GWL ; Telefunken (ID = 88068) Radio 523GWL ; Telefunken (ID = 56933) Radio

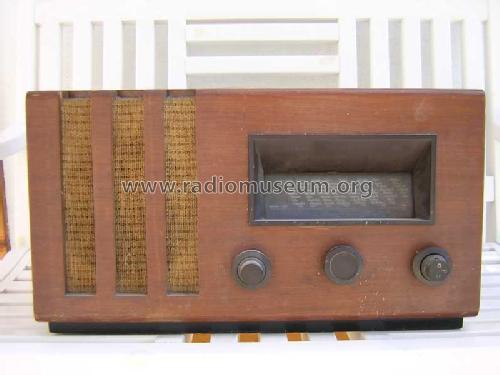

523GWL ; Telefunken (ID = 53507) Radio 523GWL ; Telefunken (ID = 56932) Radio

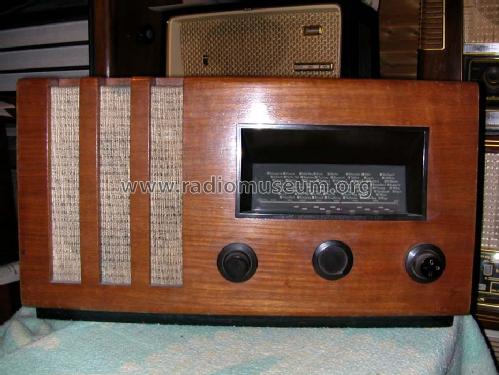

523GWL ; Telefunken (ID = 88069) Radio 523GWL ; Telefunken (ID = 629978) Radio
523GWL ; Telefunken (ID = 1580296) Radio
Use red slider bar for more.
523GWL ; Telefunken (ID = 88068) Radio
Telefunken: 523GWL [Radio] ID = 88068 933x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model 523GWL (T523GWL), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
das 543GWL nach erfolgter Restauration

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner

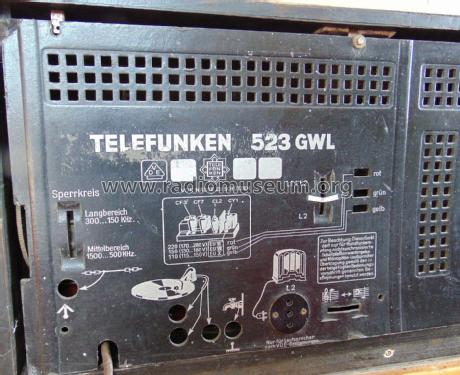

Valves / Tubes 4: CF3 CF7 CL2 CY1 EUX or EUVII or EUVI
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 523GWL - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 315 x 315 mm / 22.4 x 12.4 x 12.4 inch
Notes

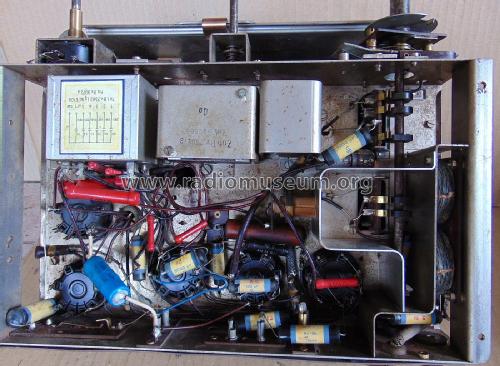

Chassis wie im Siemens 53GWL.

Price in first year of sale 264.00 RM
Collectors' prices
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

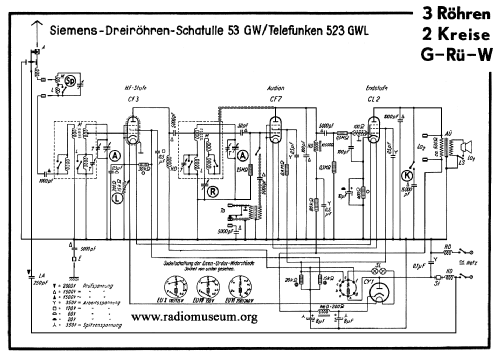

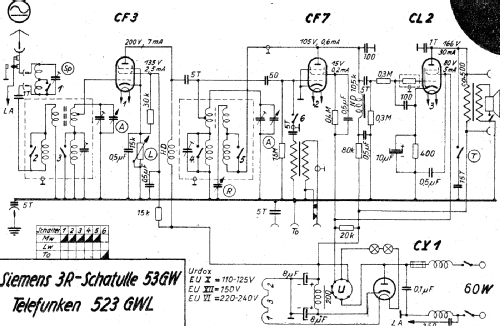

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers. (Telefunken-Werkstattbuch)


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
