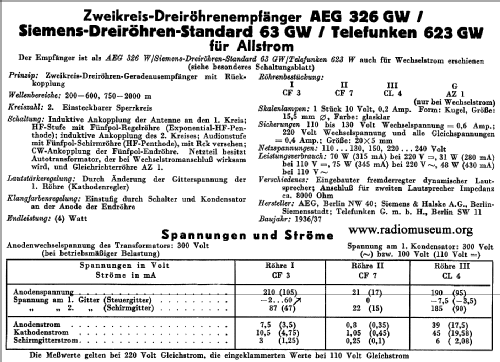

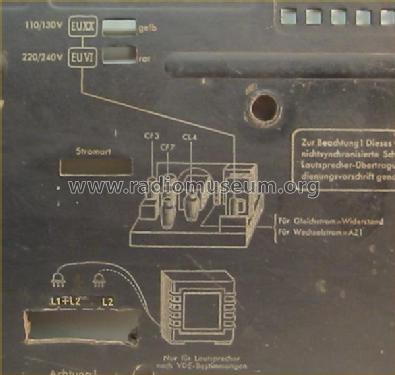

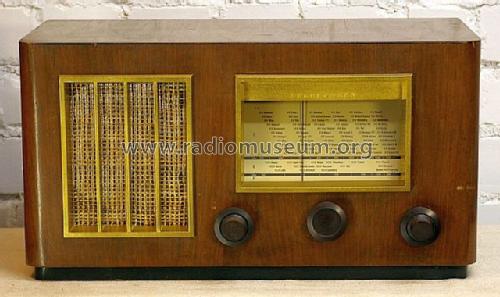

Telefunken: 623GW [Radio] ID = 99028 933x613

Select picture or schematic to display from thumbnails on the right and click for download.

For model 623GW (T623GW), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:

Germany

Manufacturer / Brand:

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Year: 1936/1937

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: CF7 CF3 CL4 optional AZ1 EUXX or EUVI

Main principle	TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits	2 AM circuit(s)
Wave bands	Broadcast (MW) and Long Wave.
Details
Power type and voltage	AC/DC-set / 110-240 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org	Model: 623GW - Telefunken Deutschland TFK,
Material	Wooden case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	564 x 300 x 307 mm / 22.2 x 11.8 x 12.1 inch
Notes	Spartransformator. Bei Gleichspannung wird anstatt einer AZ1 der Vorwiderstand Lager Nr.10979 eingesetzt,ist umschaltbar für 110 und 220 Volt. Parallelgerät zum Siemens Standard 63GW in anderem Gehäuse. Parallelgerät zum AEG 3-26GW - 326GWL.
Net weight (2.2 lb = 1 kg)	14.3 kg / 31 lb 8 oz (31.498 lb)
Price in first year of sale	248.00 RM
Source of data	HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

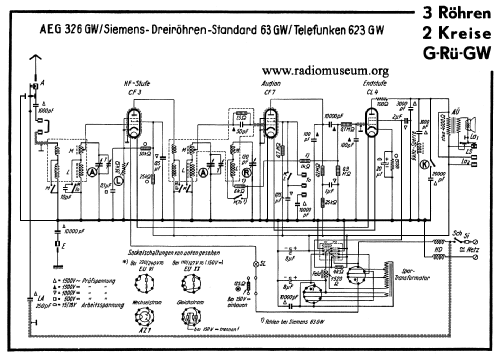

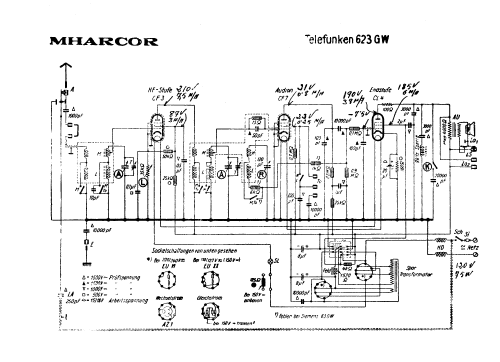

Circuit diagram reference	Lange+Schenk+FS-Röhrenbestückung

All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3459 models, 3030 with images and 2005 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Urmas Tingas (EST)

Collection of Rudolf Osterkamp (D)

Collection of Hans-Peter Kexel (D)

Collection of Patrice Zeissloff (F)
