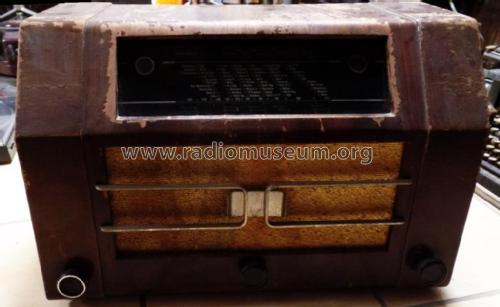

678WK (T678WK)

678WK ; Telefunken (ID = 378007) Radio 678WK ; Telefunken (ID = 378004) Radio

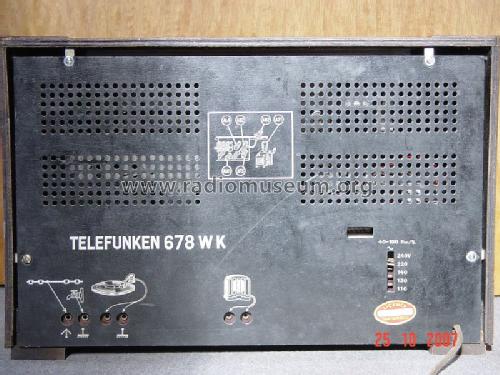

678WK ; Telefunken (ID = 378005) Radio 678WK ; Telefunken (ID = 378006) Radio
Use red slider bar for more.
678WK ; Telefunken (ID = 378007) Radio
Telefunken: 678WK [Radio] ID = 378007 698x523
Select picture or schematic to display from thumbnails on the right and click for download.
For model 678WK (T678WK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1938 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ACH1 AF3 AB2 AL4 AM2 AZ1
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 678WK - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 350 x 300 mm / 21.7 x 13.8 x 11.8 inch
Notes Offenbar Exportmodell für BENELUX.

Model page created by Ralf Birkenkampf. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3447 models, 3031 with images and 2022 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
