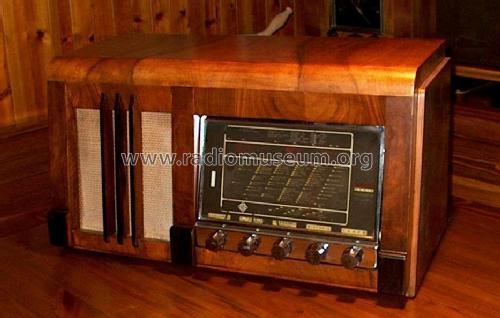

788; Telefunken Italia, (ID = 213556) Radio
Telefunken Italia,: 788 [Radio] ID = 213556 933x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model 788, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: WE43 or ACH1C WE33 or AF3 WE37 or ABC1 WE39 or AC2 WE38 or AL4 WE38 or AL4 WE53
Main principle Superheterodyne (common); ZF/IF 469 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 788 - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 665 x 350 x 325 mm / 26.2 x 13.8 x 12.8 inch
Notes

Indicatore ottico di sintonia.

Controllo di tono sull'ingresso del giradischi.

Price in first year of sale 2'200.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Il Radio Libro, (Ravalico) 6a edizione 1942

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Telefunken Italia, Milano
Here you find 263 models, 229 with images and 178 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
