Allegro-Stereo 2082 hell

Allegro-Stereo 2082; Telefunken (ID = 545729) Radio

Allegro-Stereo 2082; Telefunken (ID = 545730) Radio

Allegro-Stereo 2082; Telefunken (ID = 545731) Radio

Allegro-Stereo 2082; Telefunken (ID = 545733) Radio

Allegro-Stereo 2082; Telefunken (ID = 545734) Radio

Allegro-Stereo 2082; Telefunken (ID = 545735) Radio

Allegro-Stereo 2082; Telefunken (ID = 761244) Radio

Allegro-Stereo 2082; Telefunken (ID = 761245) Radio

Allegro-Stereo 2082; Telefunken (ID = 1960576) Radio

Allegro-Stereo 2082; Telefunken (ID = 1960577) Radio
Allegro-Stereo 2082; Telefunken (ID = 1075549) Radio
Use red slider bar for more.
Allegro-Stereo 2082; Telefunken (ID = 1075549) Radio
Telefunken: Allegro-Stereo 2082 [Radio] ID = 1075549 900x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allegro-Stereo 2082 hell, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

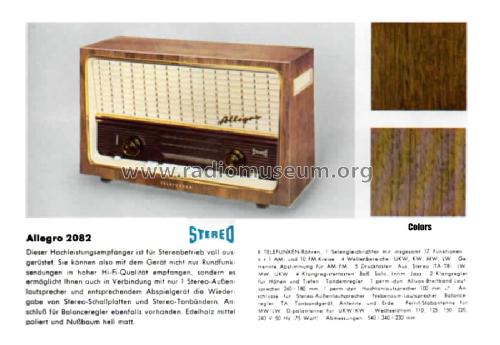

Original propekt. Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM84 ECC83 ECL82 EL84
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Allegro-Stereo 2082 [hell] - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 345 x 230 mm / 22.4 x 13.6 x 9.1 inch
Notes Nussbaum, hell mattiert
Wird im HdB d.Rdf-& Ferns-GrH 1960/61 als Allegro 2082 geführt, im Plan und am Gerät als Allegro-Stereo 2082.
Net weight (2.2 lb = 1 kg) 10.2 kg / 22 lb 7.5 oz (22.467 lb)
Price in first year of sale 328.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
