Allstromsuper 976GWK (T976GWK)

Allstromsuper 976GWK ; Telefunken (ID = 7408) Radio

Allstromsuper 976GWK ; Telefunken (ID = 717778) Radio

Allstromsuper 976GWK ; Telefunken (ID = 717779) Radio

Allstromsuper 976GWK ; Telefunken (ID = 11953) Radio
Allstromsuper 976GWK ; Telefunken (ID = 241396) Radio Allstromsuper 976GWK ; Telefunken (ID = 241398) Radio
Allstromsuper 976GWK ; Telefunken (ID = 241397) Radio Allstromsuper 976GWK ; Telefunken (ID = 1141) Radio
Allstromsuper 976GWK ; Telefunken (ID = 241399) Radio
Use red slider bar for more.
Allstromsuper 976GWK ; Telefunken (ID = 241396) Radio
Telefunken: Allstromsuper 976GWK [Radio] ID = 241396 906x485
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allstromsuper 976GWK (T976GWK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CK1 CF3 CB2 CL4 C/EM2 optional AZ1 KS1320 or EUVI or EUXX
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Allstromsuper 976GWK - Telefunken Deutschland TFK,
Material Wooden case
Dimensions (WHD) 660 x 320 x 330 mm / 26 x 12.6 x 13 inch
Notes Variable Bandbreite.
Net weight (2.2 lb = 1 kg) 16.3 kg / 35 lb 14.4 oz (35.903 lb)
Price in first year of sale 325.00 RM
Collectors' prices
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

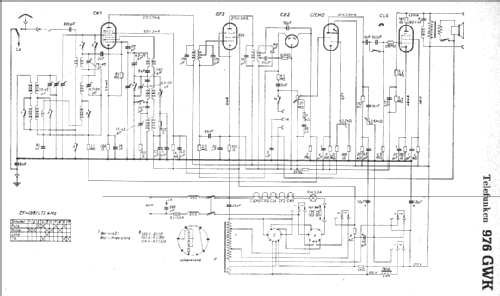

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3421 models, 2983 with images and 1969 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
