Atlanta de luxe 101

Atlanta de luxe 101; Telefunken (ID = 39008) Radio

Atlanta de luxe 101; Telefunken (ID = 39010) Radio

Atlanta de luxe 101; Telefunken (ID = 39011) Radio

Atlanta de luxe 101; Telefunken (ID = 22430) Radio

Atlanta de luxe 101; Telefunken (ID = 22431) Radio

Atlanta de luxe 101; Telefunken (ID = 22432) Radio

Atlanta de luxe 101; Telefunken (ID = 22433) Radio

Atlanta de luxe 101; Telefunken (ID = 22434) Radio

Atlanta de luxe 101; Telefunken (ID = 22435) Radio

Atlanta de luxe 101; Telefunken (ID = 22436) Radio
Atlanta de luxe 101; Telefunken (ID = 299068) Radio Atlanta de luxe 101; Telefunken (ID = 196929) Radio
Atlanta de luxe 101; Telefunken (ID = 299070) Radio Atlanta de luxe 101; Telefunken (ID = 13620) Radio
Atlanta de luxe 101; Telefunken (ID = 31887) Radio Atlanta de luxe 101; Telefunken (ID = 196930) Radio
Atlanta de luxe 101; Telefunken (ID = 196931) Radio Atlanta de luxe 101; Telefunken (ID = 196932) Radio
Atlanta de luxe 101; Telefunken (ID = 299071) Radio Atlanta de luxe 101; Telefunken (ID = 302552) Radio
Use red slider bar for more.
Atlanta de luxe 101; Telefunken (ID = 299068) Radio

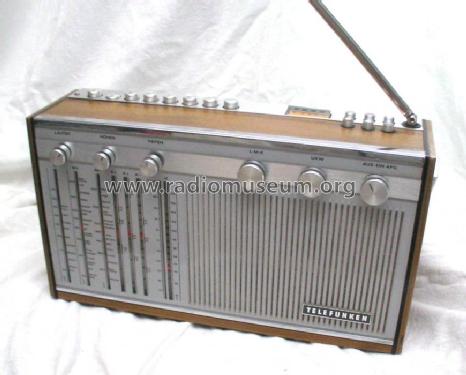

Telefunken: Atlanta de luxe 101 [Radio] ID = 299068 907x596
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlanta de luxe 101, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1969–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17:
Main principle Superhet with RF-stage; ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 117; 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Atlanta de luxe 101 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 195 x 105 mm / 14.2 x 7.7 x 4.1 inch
Notes 2 Ausführungen: hell- und dunkelbraun.
UKW-Baustein mit FET;
3 KW - Bereiche, KW-Lupe mit dem UKW-Drehknopf einstellbar.
NF-Vorverstärker in Dickfilmtechnik.
Ausgangsleistung bei Netzbetrieb: 4 W.
NF-Anschluss (Ein- und Ausgang); Stereo-Decoder nachrüstbar.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 458.00 DM
Collectors' prices
Source of data Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1970/1971
Literature/Schematics (1) -- Original-techn. papers.
