IA50

IA50; Telefunken (ID = 1017291) Car Radio

IA50; Telefunken (ID = 261211) Car Radio

IA50; Telefunken (ID = 1017292) Car Radio

IA50; Telefunken (ID = 1017296) Car Radio

IA50; Telefunken (ID = 7484) Car Radio
IA50; Telefunken (ID = 87471) Car Radio IA50; Telefunken (ID = 87475) Car Radio
IA50; Telefunken (ID = 87473) Car Radio IA50; Telefunken (ID = 87472) Car Radio
IA50; Telefunken (ID = 87474) Car Radio IA50; Telefunken (ID = 87476) Car Radio
IA50; Telefunken (ID = 87477) Car Radio IA50; Telefunken (ID = 300891) Car Radio
IA50; Telefunken (ID = 1135251) Car Radio IA50; Telefunken (ID = 1135252) Car Radio
Use red slider bar for more.

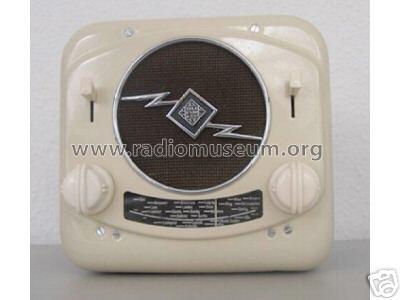

IA50; Telefunken (ID = 87471) Car Radio
Telefunken: IA50 [Car Radio] ID = 87471 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model IA50, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Ebay Nr.: 2291714958 14.12.2004

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1949/1950 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EF11 ECH11 EBF11 ECL11 EZ11 or
Semiconductors (the count is only for transistors) 32/1NT6 32/1NT12
Main principle Superhet with RF-stage; ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: IA50 - Telefunken Deutschland TFK,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 190 x 180 x 180 mm / 7.5 x 7.1 x 7.1 inch
Notes variable Bandbreite [FS4907].
Price in first year of sale 545.00 DM
Collectors' prices

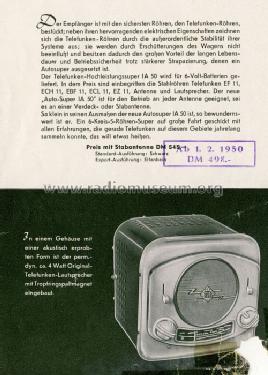

Source of data Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb

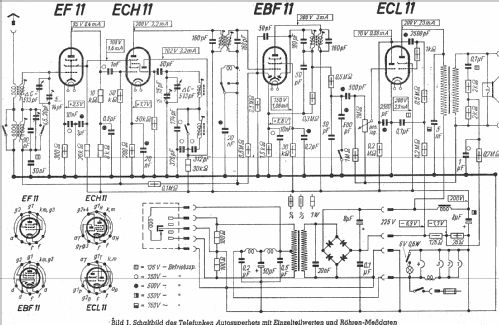

Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (4914)


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3352 models, 2912 with images and 1930 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
