Bajazzo Universal 401

Bajazzo Universal 401; Telefunken (ID = 200889) Radio

Bajazzo Universal 401; Telefunken (ID = 200890) Radio

Bajazzo Universal 401; Telefunken (ID = 232182) Radio

Bajazzo Universal 401; Telefunken (ID = 200891) Radio

Bajazzo Universal 401; Telefunken (ID = 200892) Radio

Bajazzo Universal 401; Telefunken (ID = 703195) Radio

Bajazzo Universal 401; Telefunken (ID = 703196) Radio

Bajazzo Universal 401; Telefunken (ID = 1846644) Radio

Bajazzo Universal 401; Telefunken (ID = 1846645) Radio

Bajazzo Universal 401; Telefunken (ID = 1846646) Radio
Bajazzo Universal 401; Telefunken (ID = 2400985) Radio Bajazzo Universal 401; Telefunken (ID = 2400982) Radio
Bajazzo Universal 401; Telefunken (ID = 104830) Radio Bajazzo Universal 401; Telefunken (ID = 486669) Radio
Bajazzo Universal 401; Telefunken (ID = 486670) Radio Bajazzo Universal 401; Telefunken (ID = 486671) Radio
Bajazzo Universal 401; Telefunken (ID = 551581) Radio Bajazzo Universal 401; Telefunken (ID = 551582) Radio
Bajazzo Universal 401; Telefunken (ID = 551583) Radio Bajazzo Universal 401; Telefunken (ID = 551584) Radio
Use red slider bar for more.

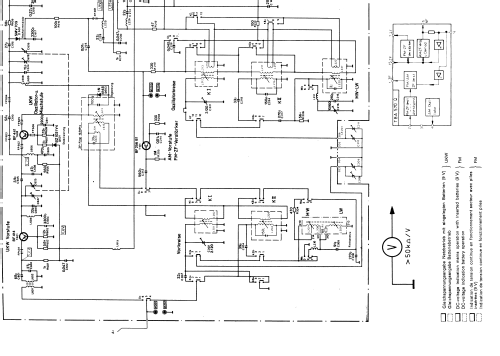

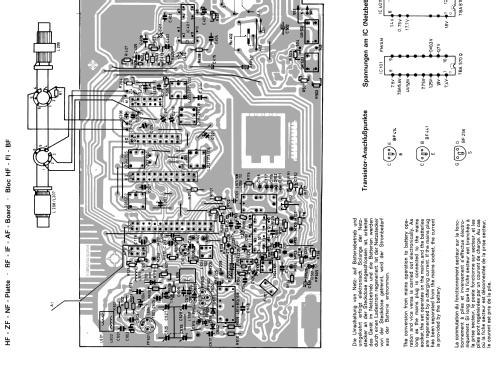

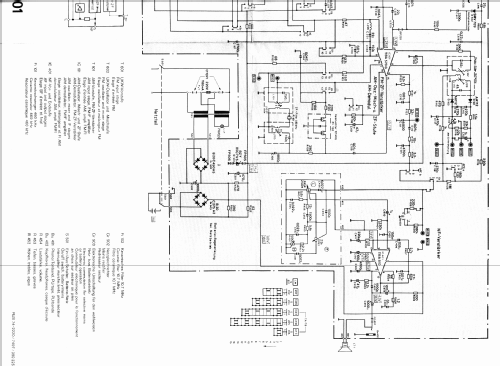

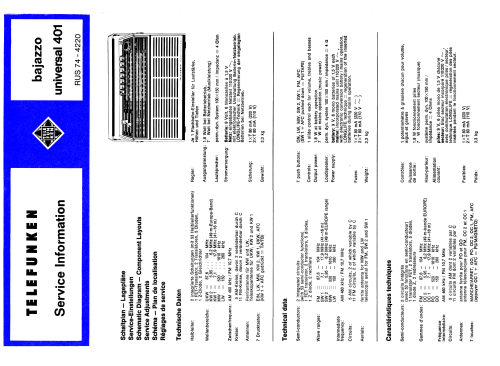

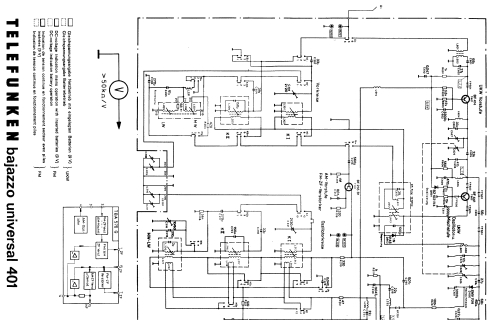

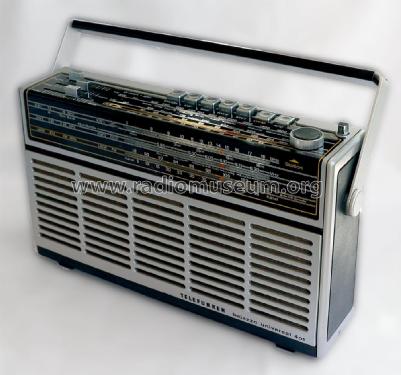

Bajazzo Universal 401; Telefunken (ID = 2400985) Radio
Telefunken: Bajazzo Universal 401 [Radio] ID = 2400985 1400x1308
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bajazzo Universal 401, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1973–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: BF414 BF441 BF256 TBA570 TBA810
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Bajazzo Universal 401 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 220 x 80 mm / 14.2 x 8.7 x 3.1 inch
Notes ICs: 2
Gespreiztes 49-m-Band; NF-Ausgangsleistung bei Netzbetrieb = 4 W.
Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Collectors' prices
Source of data Handbuch VDRG 1973/1974
Mentioned in Handbuch VDRG 1975/1976

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3409 models, 2975 with images and 1961 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken: Bajazzo Universal 401
Threads: 2 | Posts: 8
Hits: 2894     Replies: 3
telefunken: 401; Bajazzo Universal
Ashis Mukerjea
28.Dec.08
  1 Hello! Ich kaufte vor kurzem Telefunken Bajazzo Universal 401. Ich möchte die Vorwahlknopfschnur und -kondensatore ändern. Kann irgendein Körper mir wie bitte helfen, wie man das Chassis herausnimmt? I have attached a photo also to explain. Danke. Ich benutze den Microsoft deutschen übersetzer, weil früh ich diese Anzeige auf englisch aber keine Hilfe erhalten bekanntgab. Ich bin über die schlechte Sprache traurig. Bester Respekt, Ashis Mukerjea

Attachments

Günther Stabe
29.Dec.08
  2

Hello,

I don't own this model, but know a few models that were built in this years in a similar way. All these models have  nearly the same print and a large plastic frame (mounting chassis). The quad variable condenser block is soldered on the print and the scale wheel is fixed with a center screw (through a hole in the plastic frame). This scale wheel has to be pulled away - after turning off this screw - some millimeters off the quad condenser. May be that there are another two small screws to fix the condenser; these need to be removed, too. Please fix the scale wheel with adhesive tape at the frame and try to remove the print carefully - only the cables for antenna, speaker and battery / power supply will be still connected with the print.

Hopefully it will help... best regards,

Guenther Stabe





Ashis Mukerjea
30.Dec.08
  3

Hello Mr. Stabe,

Thank you very much for your help. I will open the radio again this weekened and repair it as suggested by you.

Best Regards,

Ashis

Ashis Mukerjea
31.Dec.08
  4

Hello Mr. Stabe,

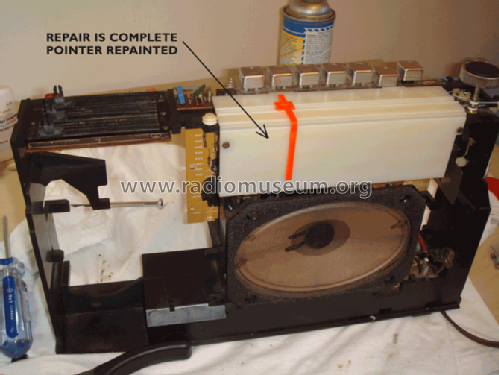

Once again thanks for your help. I figured it out how to take the chassis out. It was a very different, simple and practical way to take the whole thing out. Only german radios were made like this those days. I will post the pictures some time on this Radio's page.

Best Regards

Ashis


Hits: 2233     Replies: 3
telefunken: 401; Bajazzo Universal
Ashis Mukerjea
09.Dec.08
  1

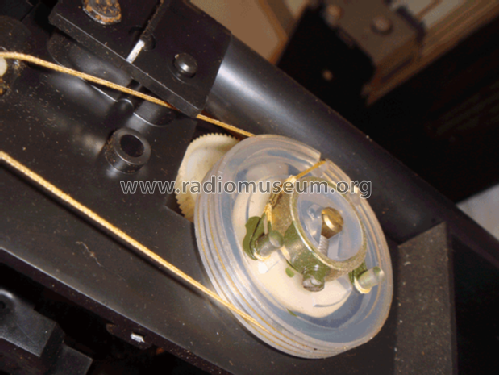

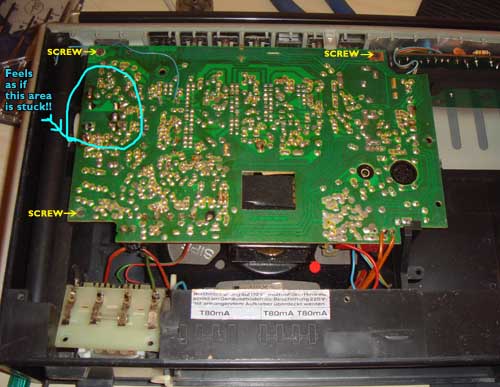

Hi, I recently bought a Telefunken Bajazzo Universal 401. It has couple of issues. Upon opening the back I see the PCB but even after opening the three screws from the PCB, it doesn't gives me access under to change the dial cord and few capacitors. Can any one please help me as how to take the PCB off? I have attached a photo also to explain. Thanks, Best regards, Ashis Mukerjea

Attachments

Reiner Scholz
28.Dec.08
  2

 Hello Mr. Mukerja,

 I suppose, there is no owner of this model around  to give a correct answer.

Please have a look underneath the PCB to find any more attachments such as an outgoing control shaft of tuning or tone unit , twisted clamps, a hidden srew behind a front panel , aerial , DC jacks .....

What´s about the white disk within the drawn circuit?

Ashis Mukerjea
28.Dec.08
  3

Hello Mr Scholz,

Thank you for your reply. Once I investigate again, I shall get back to you.

Regards

Ashis Mukerjea
05.Jan.09
  4

Hello Mr. Scholz,

Once again thanks. I figured it out how to take the chassis out. It was a very different, simple and practical way to take the whole thing out. Only german radios were made like this those days. I will post the pictures some time on this Radio's page.

Best Regards

Ashis


Telefunken: Bajazzo Universal 401
End of forum contributions about this model
