• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164244

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

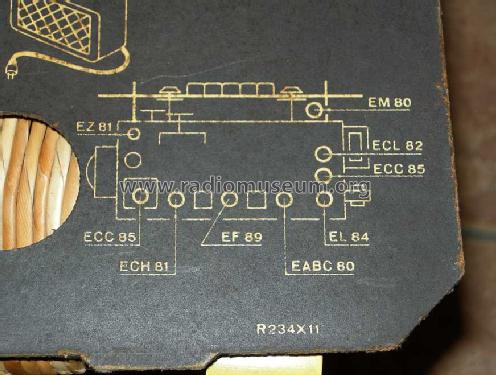

• ECC85 ECH81 EF89 EABC80 EM80 ECC85 ECL82 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 120 - 275 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

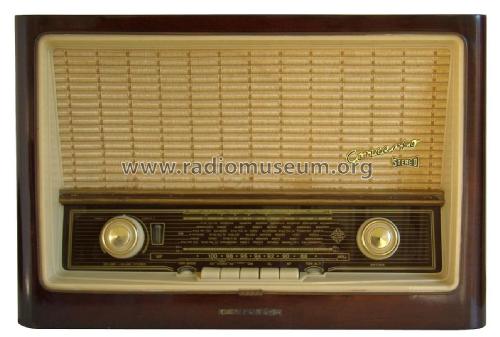

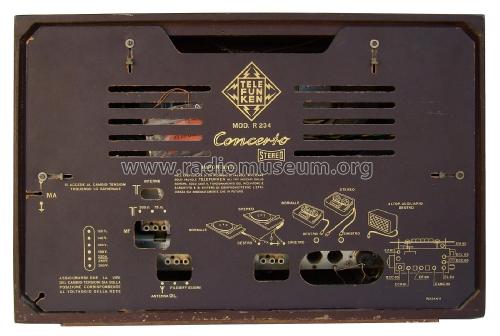

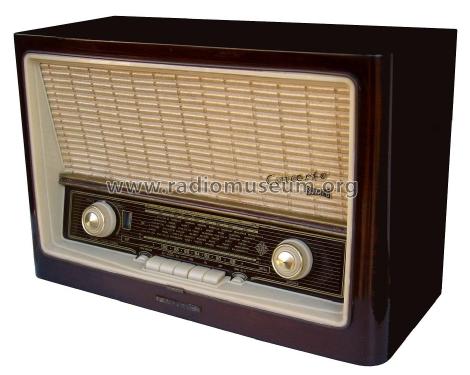

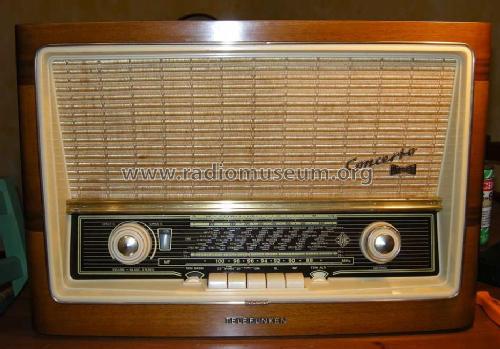

• Model: Concerto Stereo R234 - Telefunken Italia, Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 538 x 350 x 221 mm / 21.2 x 13.8 x 8.7 inch

• Notes

• Riceve anche la Filodiffusione.

  Vedi anche Telefunken Concerto RF Stereo

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)

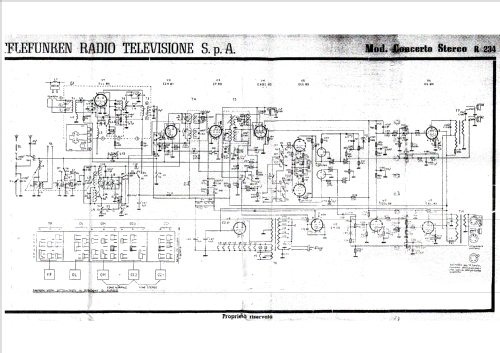

• -- Schematic (.)

• Author
• Model page created by Sergio Bracchi. See "Data change" for further contributors.
