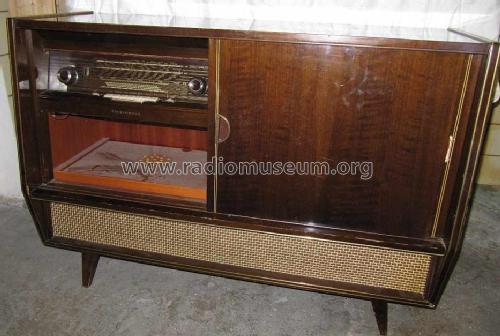

Dominante III ; Telefunken (ID = 1036630) Radio Dominante III ; Telefunken (ID = 1036631) Radio
Dominante III ; Telefunken (ID = 1036632) Radio
Use red slider bar for more.
Dominante III ; Telefunken (ID = 294194) Radio
Telefunken: Dominante III [Radio] ID = 294194 420x318
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dominante III (3) Nussbaum dkl., Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Dominante III [Nussbaum dkl.] - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1160 x 825 x 440 mm / 45.7 x 32.5 x 17.3 inch
Notes Phono-Chassis = TW561/562.
Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)
Price in first year of sale 948.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
