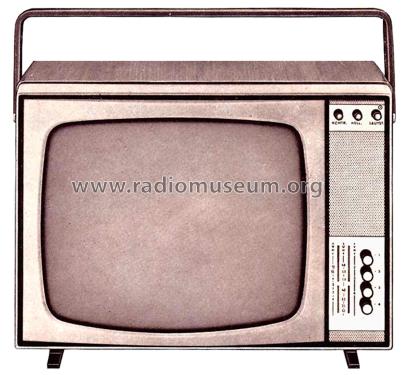

FE105P

FE105P; Telefunken (ID = 445521) Television

FE105P; Telefunken (ID = 445522) Television

FE105P; Telefunken (ID = 1280926) Television

FE105P; Telefunken (ID = 1280927) Television

FE105P; Telefunken (ID = 1280928) Television

FE105P; Telefunken (ID = 1280930) Television

FE105P; Telefunken (ID = 1280932) Television

FE105P; Telefunken (ID = 1280933) Television

FE105P; Telefunken (ID = 1280934) Television
FE105P; Telefunken (ID = 1280811) Television FE105P; Telefunken (ID = 291352) Television
FE105P; Telefunken (ID = 981459) Television FE105P; Telefunken (ID = 981543) Television
Use red slider bar for more.
FE105P; Telefunken (ID = 1280811) Television

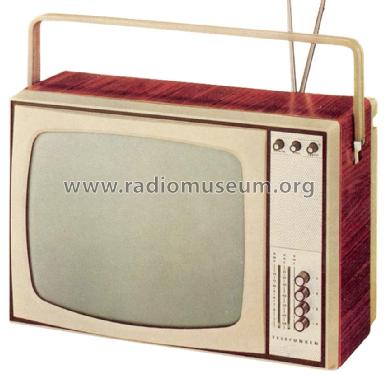

Telefunken: FE105P [Television] ID = 1280811 850x830
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE105P, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Q: Telefunken, Produkt-Katalog 1966

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1965–1967 Category: Television Receiver (TV) or Monitor
Valves / Tubes 9: 16ATP4
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FE105P - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 350 x 240 mm / 19.3 x 13.8 x 9.4 inch
Notes VHF/UHF. Portable.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Source of data Handbuch VDRG 1965/1966

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
