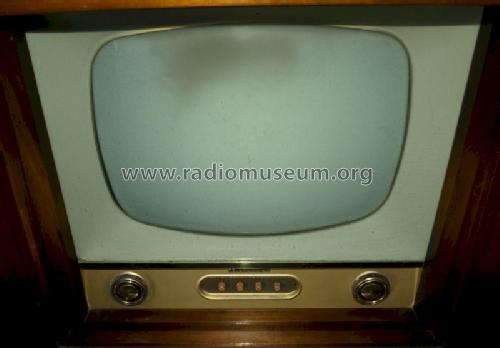

FE11/43T; Telefunken (ID = 1199378) Television
Telefunken: FE11/43T [Television] ID = 1199378 800x558
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE11/43T, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
FE11/43T in Einbauschrank (Tischlerarbeit?) Ebay auction by user jochenfeldmann1 320875133024

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: PCC84 PCF82 EF80 EF80 EF80 PL83 ECC82 PCL81 ECH81 PL81 PY83 DY80 EF80 PABC80 or EAA91 PL82 or PCL81 MW43-64
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: FE11/43T - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 480 x 440 mm / 20.5 x 18.9 x 17.3 inch
Notes

Empfangsbereich: Kanal 2 - 11 im VHF Band I und III.

Telefunken FE1/43T wurde im Ton-Demodulator und NF-Verstärker entweder mit PABC80 und PL82 oder der Kombination EAA91 mit PCL81 gefertigt.

Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 788.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Mentioned in -- Original-techn. papers.
