FE12/43SF
Use red slider bar for more.
Telefunken: FE12/43SF [Television] ID = 1635938 524x699

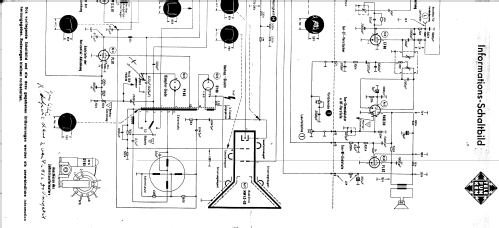

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1957/1958 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 17: PCC88 PCF82 EF80 PL83 ECC82 PABC80 PL82 ECH81 PCL81 PL81 PY83 DY80 MW43-69 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 38900 kHz |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | Radio Control (+Remote Wire etc) |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: FE12/43SF - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Console with any shape - in general |
| Dimensions (WHD) | 525 x 870 x 480 mm / 20.7 x 34.3 x 18.9 inch |
| Notes | Wie FE12/43S, jedoch mit PCC88. |
| Net weight (2.2 lb = 1 kg) | 36 kg / 79 lb 4.7 oz (79.295 lb) |
| Price in first year of sale | 1'038.00 DM |
| Source of data | HdB d.Rdf-& Ferns-GrH 1957/58 |
Model page created by Bernd P. Kieck. See "Data change" for further contributors.
