FE233S

FE233S; Telefunken (ID = 436527) Television

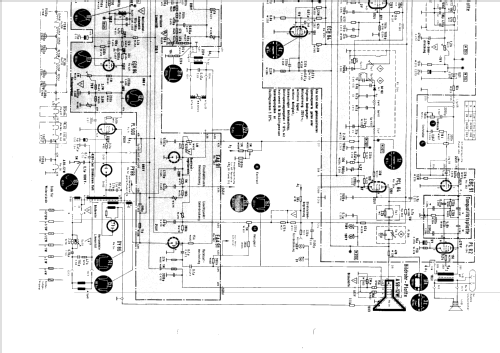

FE233S; Telefunken (ID = 436501) Television

FE233S; Telefunken (ID = 436502) Television

FE233S; Telefunken (ID = 436499) Television

FE233S; Telefunken (ID = 480944) Television
FE233S; Telefunken (ID = 303005) Television
Use red slider bar for more.
FE233S; Telefunken (ID = 303005) Television
Telefunken: FE233S [Television] ID = 303005 573x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE233S, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1963/1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PC86 PC88 PCC88 PCF82 EF85 EF184 PCL84 EF80 EBC91 PL82 ECH84 PCL85 EAA91 PL500 PY88 DY86 A59-12W
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FE233S - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 680 x 910 x 480 mm / 26.8 x 35.8 x 18.9 inch
Notes VHF/UHF.
Baugleich mit AEG FE233S.
Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)
Price in first year of sale 1'279.00 DM
Source of data Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
