• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1962/1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 107640

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC88 PCF82 PC88 PC86 PCF82 EF80 EBC91 PL82 EF85 EF85 EF184 PCL84 ECH84 PCL85 ECH84 EAA91 PL500 PY88 DY86 AW59-90

• Number of Transistors

• Semiconductors
• BA110 BA110 OA150 OA150 OA160 OA172 OA172 E60C5 E60C5 OY101

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

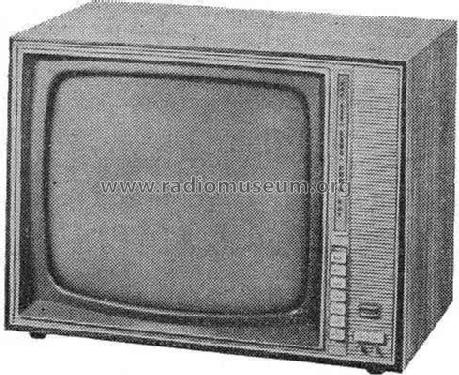

• Model: FE242T - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 730 x 510 x 420 mm / 28.7 x 20.1 x 16.5 inch

• Notes

• VHF/UHF. Anschraubbare Beine gegen Mehrpreis (25,- DM).

  Anschluss für Fernregler FR 6 (Regelung von Lautstärke und Helligkeit).

• Net weight (2.2 lb = 1 kg)
• 34 kg / 74 lb 14.2 oz (74.89 lb)

• Price in first year of sale
• 1,295.00 DM

• Source of data
• Handbuch VDRG 1962/1963

• Mentioned in
• -- Original-techn. papers. (FS-Service FVH62-2242)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
