Gavotte 55; Telefunken (ID = 2082248) Radio

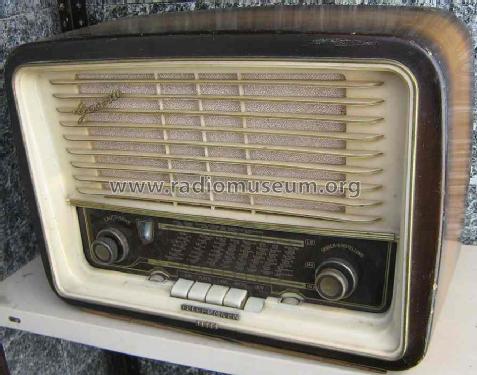

Telefunken: Gavotte 55 [Radio] ID = 2082248 1000x728
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gavotte 55, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Gavotte 55 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 475 x 335 x 195 mm / 18.7 x 13.2 x 7.7 inch
Notes Schaltung zeigt Exportvariante für USA. baugleich mit AEG 3054WU
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 269.00 DM
Collectors' prices
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3409 models, 2974 with images and 1961 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Telefunken: Gavotte 55
Threads: 1 | Posts: 3
Hits: 4929     Replies: 2
telefunken: 55; Gavotte MW(AM) Ferrite Core Antenna
Omer Suleimanagich
15.Jun.08
  1

Does anyone know if this model came with a ferrite core antenna(built in), or only uses an external MW antenna?



The Gavotte 7, has a built in antenna.

Hans M. Knoll
15.Jun.08
  2

Hello Omer.

A view to the inner Part of this Radio ( US Version)  and the part of the Diagramm, say. no, they have not a Ferritantenna.

Only long wire is províde.



regards knoll

Omer Suleimanagich
16.Jun.08
  3

Thank you Hans for the quick reply!

I suspected that this model  requires an external antenna, but was not sure, since other manufacturers with competative models of this vintage provided ferrite antennas.

I came to the conclusion, that the Gavotte 7, is probably the best model of this model series, being that it comes with internal MW and UKW(FM) antennas, bigger wooden case, uses an EL 84, and has a larger  speaker,  a long with two electrostatic speakers
