For model Gavotte 9, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

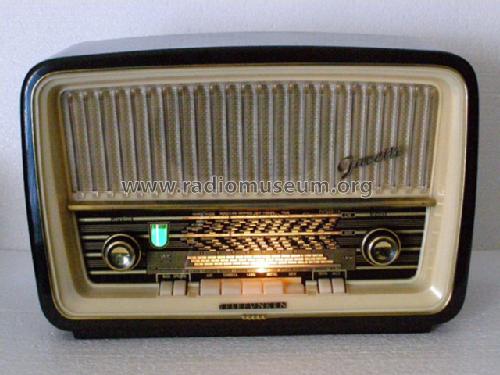

Frontansicht

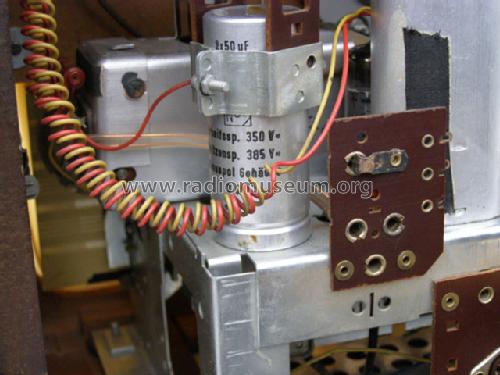

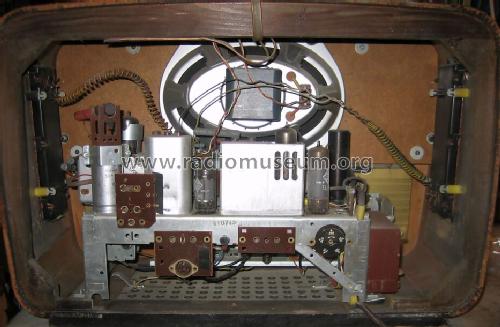

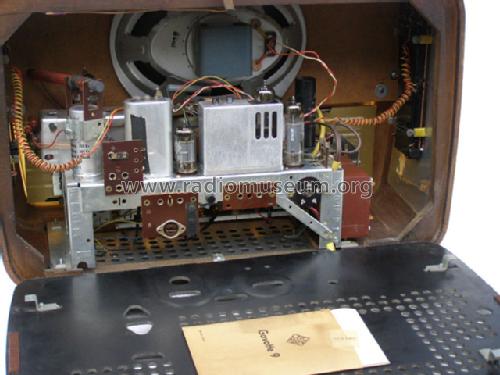

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner

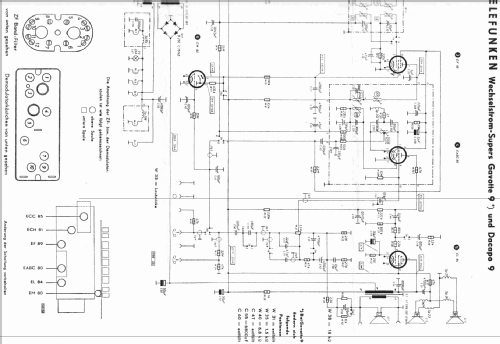

Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84

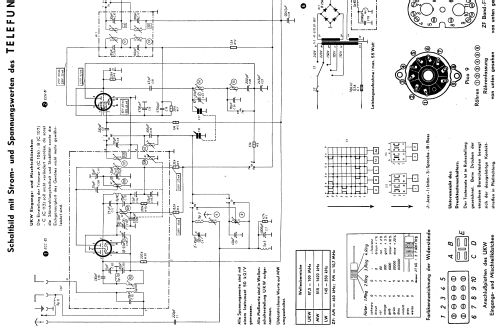

Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details

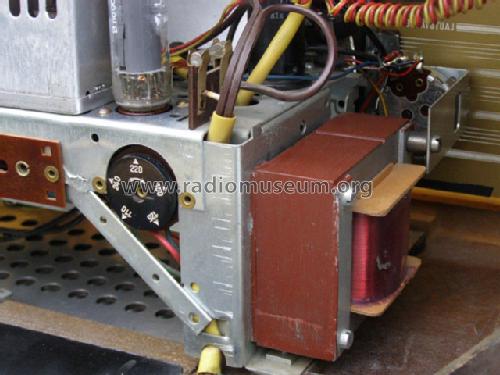

Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Gavotte 9 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 460 x 300 x 200 mm / 18.1 x 11.8 x 7.9 inch
Net weight (2.2 lb = 1 kg) 8.2 kg / 18 lb 1 oz (18.062 lb)
Price in first year of sale 279.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3449 models, 3033 with images and 2025 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken: Gavotte 9
Threads: 2 | Posts: 4
Hits: 1693     Replies: 1
Gavotte 9 FM tuner problem
Bill Rowse
07.Jan.11
  1

 My Gavotte 9 will receive FM signals loud and clear from 100Mhz to 108 Mhz but cuts off at anything below 100Mhz, only low static. Changed ECC85 to no avail, I suspect antenna coupler but has anyone seen this condition before?

Any response appreciated.

bill

Bill Rowse
07.Jan.11
  2

 My mistake, sorry to waste time.

The ECC85 that I had substituted had leakage. New tube/valve fixed the problem.

Often complex problems have simple solutions, usually human error!




Hits: 2560     Replies: 1
telefunken: 9; Gavotte
Dennis Daly
14.Oct.04
  1 This model, also known as Gavotte 9U, as designated for export to North America, is equipped additionally with Shortwave (Kurzwelle) band, from 50.5 - 16.5 meters.
Ernst Erb
14.Oct.04
  2 Dear Dennis
I have now created a Gavotte 9U and hope you or somebody else can upload a picture - perhaps also one of the scale? Thank you for your information and help to build up a good data base. I try to get some American members to help to do the same job as Konrad Birkner (Germany) has done for your brand Zenith.

Can you check if there is anything wrong and if yes correct to the model (yourself)?
I expect that the schematic of Gavotte 9 will do for this model too.

Telefunken: Gavotte 9
End of forum contributions about this model
