Jubilate 1651Ke E-Röhren

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26524

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

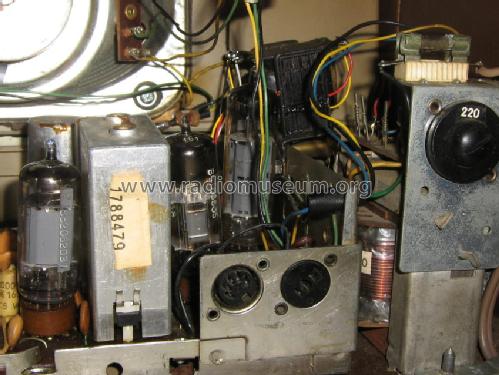

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Jubilate 1651Ke [E-Röhren] - Telefunken Deutschland TFK,

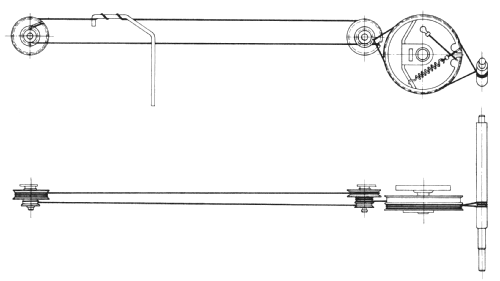

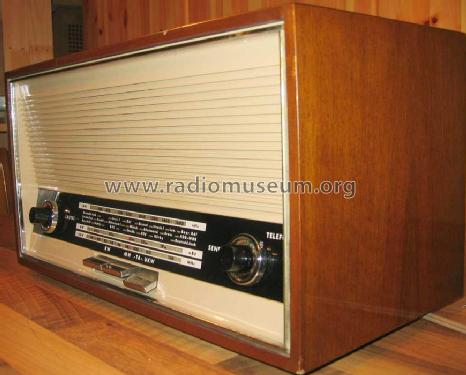

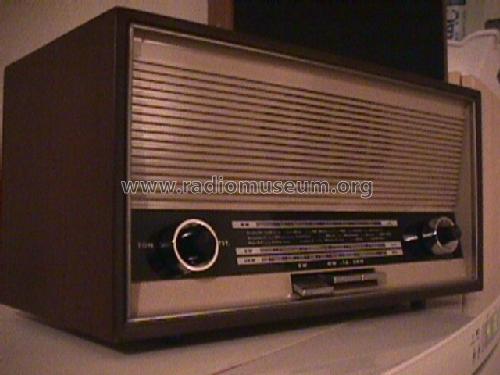

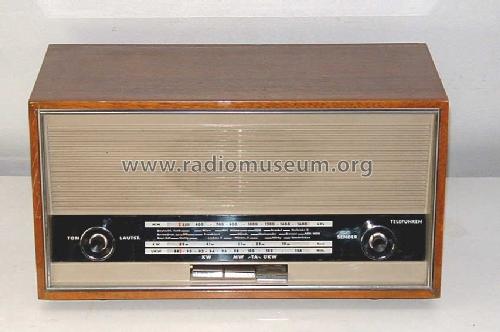

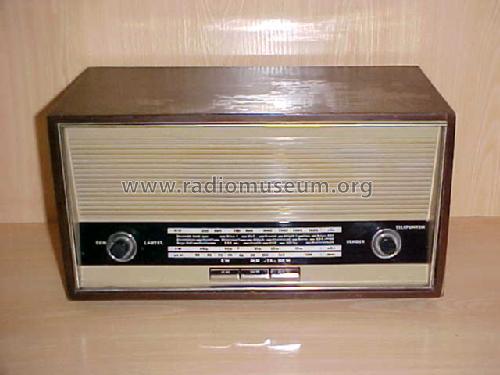

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 360 x 200 x 180 mm / 14.2 x 7.9 x 7.1 inch

• Notes

• Im VDRG-Handbuch 1966/67 nur als "Jubilate 1651K" geführt. Das "e" rührt von der E-Röhren-Bestückung her.
  Das Vorjahrsmodell Jubilate 1651k hat U-Röhren.
  Ovallautsprecher 9,5 x 15 cm.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Original-techn. papers.
