• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164094

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF89 EABC80 EL84 DM70 EZ80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 120-220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

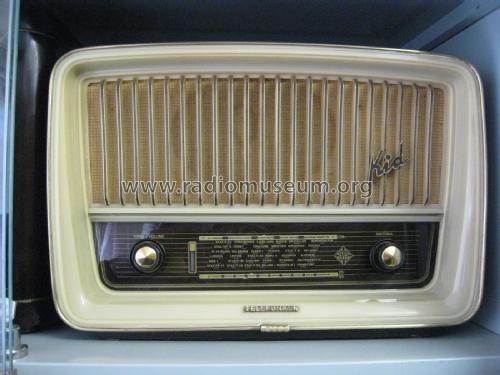

• Model: KID R199 - Telefunken Italia, Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 405 x 270 x 185 mm / 15.9 x 10.6 x 7.3 inch

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Author
• Model page created by Giovanni Mura. See "Data change" for further contributors.
