Magnetophon 85 KL EM87

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1962–1968

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27274

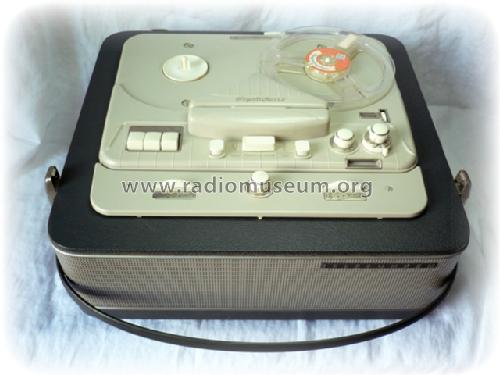

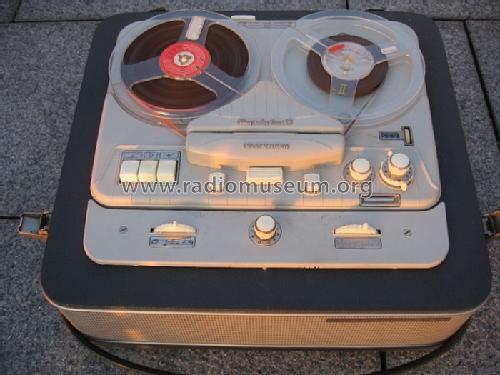

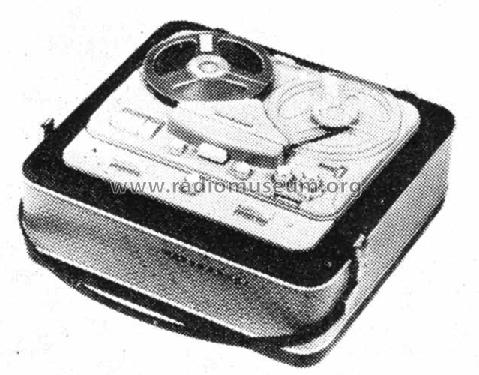

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC81 ECC83 ECC83 EF86 EM87 EL95 EL95

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 200; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Magnetophon 85 KL [EM87] - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 455 x 200 x 410 mm / 17.9 x 7.9 x 16.1 inch

• Notes
• Zweispur; Bandgeschwindigkeiten 9,5/19 cm/s; Spulen-Ø 18 cm.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Mentioned in
• Handbuch RFP 1967/68 S.461 (Thiele)

• Literature/Schematics (1)
• - - Manufacturers Literature (Bedienungsanleitung Stand 10.62)
