Magnetophon KL65/KSB
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1957/1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 325565

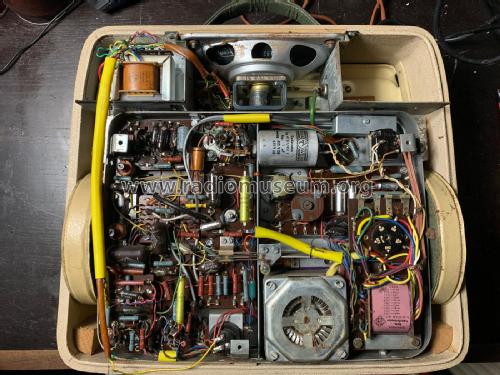

Motor
Telefunken Magnetophon KL65
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (max.)
- Material
- Various materials
- from Radiomuseum.org
- Model: Magnetophon KL65/KSB - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 381 x 159 x 340 mm / 15 x 6.3 x 13.4 inch
- Notes
-
Tape Speed: 9.5 cm/sec and 4.75 cm/sec, max. reel-Ø 13 cm
Frequency range: 60-13000 Hz at 9.5 cm/sec, 60-8000 Hz at 4.75 cm/sec
Indirect flyweel system
Automatic tape-end stop by contacting foil
Model contains a power stage for connecting a low impedance external speaker.See also the similar model Magnetophon KL65/KS.
- Net weight (2.2 lb = 1 kg)
- 9.2 kg / 20 lb 4.2 oz (20.264 lb)
- Author
- Model page created by Bartosz Szwed. See "Data change" for further contributors.
