• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1956/1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 20996

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC83 ECC81 EM71a EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• from Radiomuseum.org

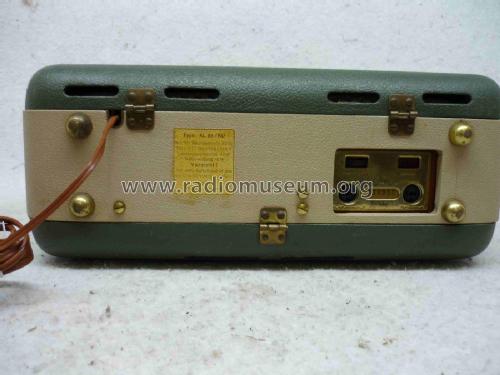

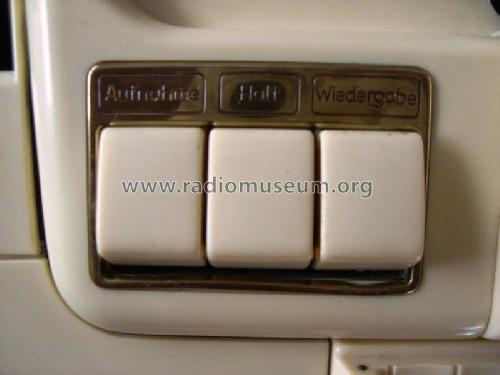

• Model: Magnetophon KL65KU - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 160 x 370 mm / 15 x 6.3 x 14.6 inch

• Notes
• Zweispur; 9,5 cm/s.; Spulen-Ø 13 cm.
  Parallelgerät zu: AEG KL65KU.

• Net weight (2.2 lb = 1 kg)
• 9.7 kg / 21 lb 5.9 oz (21.366 lb)

• Price in first year of sale
• 598.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
