• Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118057

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 140; 160; 180; 220; 275 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

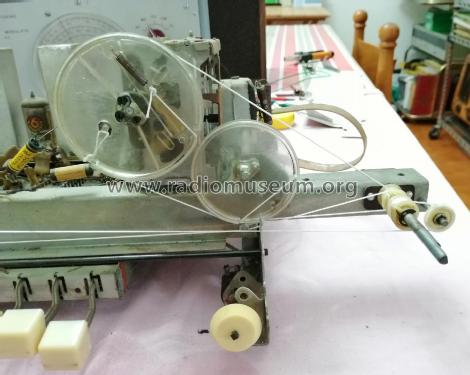

  • Model: Majestic - Telefunken Italia, Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 630 x 365 x 270 mm / 24.8 x 14.4 x 10.6 inch
  • Literature/Schematics (1)
  • -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
