- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129210

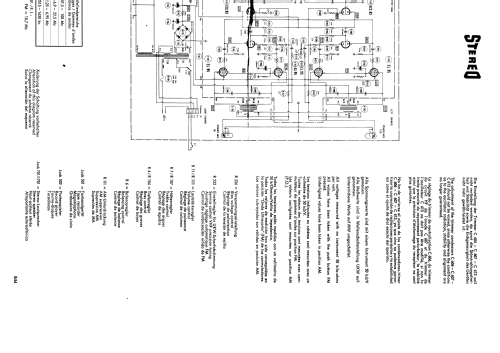

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 16 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Opus 5550 MX Hi-Fi - Telefunken Deutschland TFK,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 26 x 10 x 11 inch / 660 x 254 x 279 mm
- Notes
- Band coverage: AM 515-1600 kc; SW1 2.3 - 6.9 Mc; SW2 7.0 - 22 Mc; FM 88-108 Mc.
Teak cabinet with slide out / fold down front door to cover panel.
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
- Other Models
-
Here you find 3614 models, 3204 with images and 2154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Collections
The model Opus is part of the collections of the following members.
Forum contributions about this model: Telefunken: Opus 5550 MX Hi-Fi
Threads: 1 | Posts: 1
I have a Telefunken Opus 5550 MX stereo, and I'm trying to remove the chassis from the cabinet for cleaning and restoration work. It seems like the 5550 was the US version of the 2550, so I'm hoping to reach a wider audience with 2550 in the title.
I can remove the smaller chassis that contains the power transformer/OPTs/EL95s, but the main chassis is blocked from sliding out the back of the cabinet. The dial glass is set in a groove in the wall of the cabinet on each side, so I can only scoot it back maybe an inch before the dial glass is right up against the back of the groove.
I've tried a few different angles, and it doesn't seem like it's going to conveniently come out unless I remove one or both thin wood rails that I believe were meant for the front door to sit on when in the up position. My unit doesn't have the door :)
How do I remove the chassis from the cabinet? Do I need to remove one of those wood rails first so I can lift the dial glass up and over the groove it's sitting in?
I really appreciate the help!
Joel Comanda, 29.Jun.26
